Title 24 Insulation Requirements for Garage Office Conversions

Garage conversions in San Jose fail Title 24 energy inspections more often over insulation than any other single item — permit techs at the city's Building Division cite it as the top rough-in correction on garage-to-office projects. If you're planning a Title 24 insulation garage conversion, that statistic should shape your whole approach before drywall goes up. Insulation isn't a finishing touch here. It's a code requirement tied directly to your permit approval, and getting it wrong means ripping out walls you just closed up. Homeowners converting a garage into a home office space often assume insulation is optional since it's "just an office." It isn't.

You're converting conditioned space out of an unconditioned shell. That triggers California's Title 24 Part 6 energy code, and insulation sits at the center of that compliance package. San Jose plan checkers verify R-values against your CF1R energy form before they'll sign off framing inspection. Skip the planning step and you'll be reordering materials mid-project.

This guide walks through exactly what the code requires, where conversions typically go wrong, and how to sequence your insulation work so it passes the first time.

Why Insulation Drives Your Garage Office Approval

Your garage was never built to hold conditioned air. Slab floors, single-layer walls, and an uninsulated roof deck were fine for parking a car. They're not fine for a workspace with heating, cooling, and a computer running eight hours a day.

Comfort and Usability Once You're Working In It

Uninsulated garages swing 20+ degrees between morning and afternoon. That's unworkable for a home office. Proper insulation:

• Keeps interior temperature stable through South Bay's hot summer afternoons
• Cuts HVAC run time, lowering your monthly utility cost
• Reduces noise transfer from the street and driveway
• Protects electronics and finishes from condensation swings

The Title 24 Baseline You're Building Against

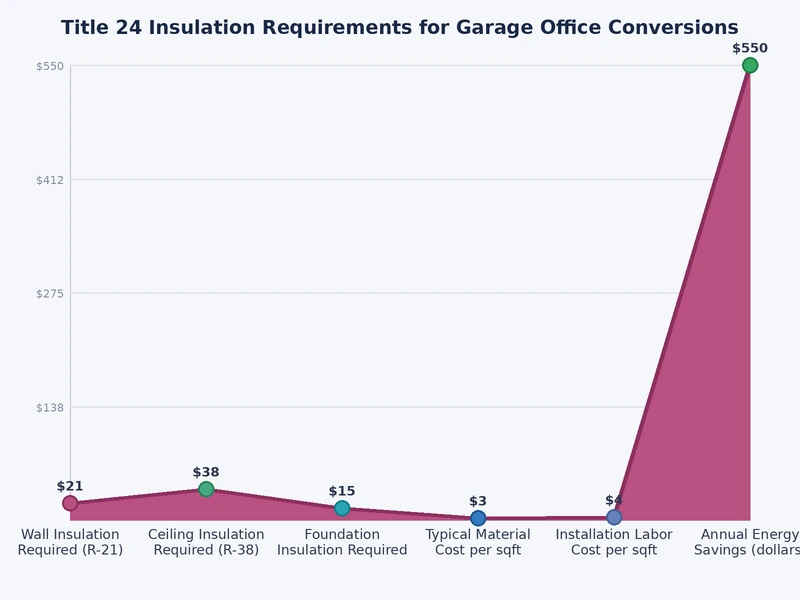

San Jose sits in Climate Zone 4 under the California Energy Commission's building standards. That zone sets specific minimums for walls, ceilings, and slab edges. Your Title 24 insulation garage conversion plan needs to hit these numbers before your CF1R form gets approved, not after.

Pro tip: pull your climate zone number off the CEC's zone map before you order materials — guessing wrong means reordering insulation mid-build.

Mistakes That Sink a Title 24 Insulation Inspection

Most failed inspections trace back to a handful of repeat issues. Watch for these before your inspector does.

Skipping the R-Value Math

Contractors sometimes install "whatever fits" between studs instead of calculating the actual assembly R-value. That's a fast way to fail. Common gaps include:

1. Using R-13 batts in a 2x6 wall that needs R-21 performance
2. Forgetting continuous insulation requirements on exterior sheathing
3. Leaving the garage door opening unaddressed if it's being infilled
4. Not accounting for compressed batts reducing effective R-value

Treating Air Sealing as an Afterthought

Insulation without air sealing underperforms badly. Gaps around outlets, top plates, and penetrations let conditioned air leak straight out. Air sealing is not optional under Title 24 — it's part of the same compliance package as your R-values.

Warning: a garage conversion that passes framing but fails duct blaster or air-leakage testing later will cost more to fix than doing it right the first time.

If you're also adding circuits for office equipment, coordinate insulation timing with your electrical rough-in so wiring penetrations get sealed before drywall closes the wall.

Meeting Requirements Step by Step

Here's the sequence that keeps inspectors happy and avoids rework.

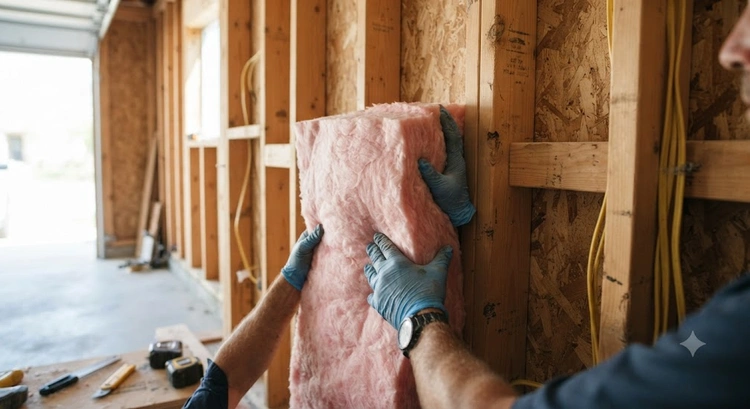

Choosing the Right Insulation Type

1. Confirm your wall thickness and stud spacing before ordering batts
2. Select fiberglass, mineral wool, or spray foam based on your assembly type
3. Insulate the ceiling or roof deck to Title 24 attic minimums
4. Address the slab edge if your conversion includes a raised floor system
5. Seal every penetration before the insulation goes in, not after

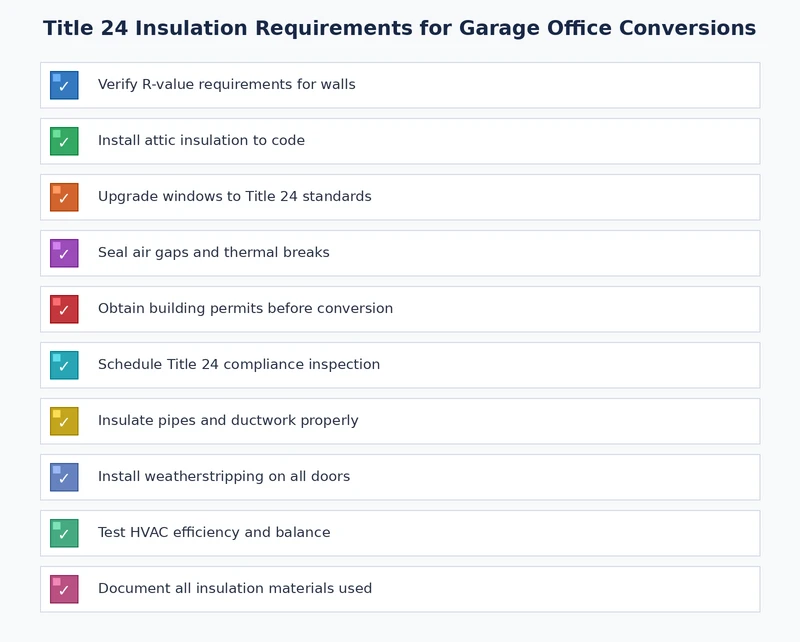

Documenting Compliance for Your Inspector

Bring paperwork to the inspection, not just materials in the wall. Keep on hand:

• Your approved CF1R energy compliance form
• Product spec sheets showing rated R-value per inch
• Photos of insulation and air sealing before drywall covers it

These records also matter later if you're calculating total conversion costs for financing or resale disclosures.

Troubleshooting Insulation Problems Mid-Project

Even careful planning runs into snags once walls are open. Here's how to recover without blowing your timeline.

Recovering From a Failed Insulation Inspection

If your inspector red-tags the rough-in, don't panic. Work the punch list methodically:

1. Get the specific correction notice in writing, not just verbal notes
2. Identify whether it's an R-value shortfall or an air-sealing gap
3. Fix only the flagged assemblies — don't re-open sealed walls unnecessarily
4. Request a re-inspection once corrections are photographed and documented

Handling Moisture and Condensation Risk

Garages sit close to grade, so moisture management matters. Watch for:

• Missing vapor retarders on the warm side of the assembly
• Insulation touching a damp slab without a proper barrier
• Poor ventilation trapping humidity behind finished walls

According to the U.S. Department of Energy, moisture trapped in wall assemblies is a leading cause of insulation performance loss over time.^[1]

Insider note: South Bay's mild winters mean condensation risk is lower than colder climates, but slab-adjacent moisture still catches first-time DIYers off guard.

Best Practices for Long-Term Performance

Passing inspection is the minimum bar. Building for durability takes a bit more discipline.

Pairing Insulation With Your HVAC Rough-In

Insulation and HVAC sizing are linked. An undersized mini-split paired with poor insulation will run constantly and still underperform. Coordinate:

• Duct or line-set routing before insulation closes the cavities
• Equipment sizing based on your final insulated envelope, not the empty garage shell
• Thermostat placement away from exterior walls for accurate readings

Working With a Title 24 Consultant Early

A consultant runs your energy model before framing starts, catching mismatches between your design and code minimums. This step pairs well with permit planning covered on our permits and Title 24 energy compliance page. It also overlaps with square footage decisions if you're weighing a JADU layout, similar to the calculations in our JADU square footage guide.

• Request the energy model before ordering any insulation materials
• Confirm your HVAC contractor has the final Title 24 numbers
• Keep a copy of the approved CF1R with your permit file

Final Thoughts

A compliant Title 24 insulation garage conversion protects your permit timeline, your comfort, and your utility bills for years after the drywall goes up. Talk to a licensed South Bay garage conversion contractor before you buy a single roll of batt insulation, and get your energy model reviewed against your actual wall assemblies. That one phone call now saves a failed inspection later.
