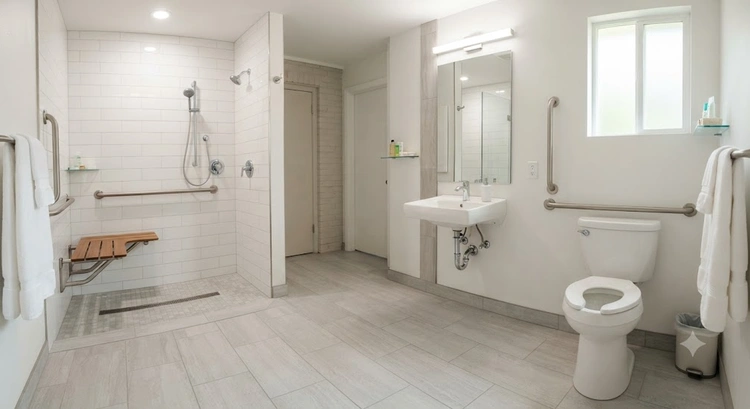

ADA-Accessible Bathroom Layout for a Garage In-Law Suite

Roughly one in four adults in the United States — about 70 million people — lives with a disability, according to the Centers for Disease Control and Prevention, and that figure climbs sharply after age 65. That statistic is driving a steady rise in requests for an ADA accessible bathroom in-law suite layout among South Bay homeowners converting garages into livable space. Multigenerational households, aging parents, and adult children returning home are the three most-cited reasons contractors hear when clients ask for barrier-free bathrooms in a garage in-law suite. The plumbing, framing, and clearance decisions made early in a conversion determine whether the finished bathroom actually functions for a wheelchair user or a person with limited mobility, or whether it merely looks accessible on paper.

Garage footprints in Santa Clara County are typically 400 to 600 square feet, which leaves little room for error when a bathroom must accommodate both fixed plumbing stub-outs and a five-foot turning radius. Homeowners planning an in-law suite for an aging parent often pair the bathroom work with broader aging-in-place design features, since grab bars, lever hardware, and zero-threshold showers tend to get specified as a package rather than piecemeal. Local permitting adds another layer: San Jose in-law suite setback requirements can shrink the buildable envelope before the bathroom layout is even sketched, so space planning and code review typically happen in parallel, not sequence.

Compliance Basics vs. Universal Design Upgrades

Not every garage in-law suite is legally required to meet full ADA standards. The Americans with Disabilities Act primarily governs public accommodations and commercial facilities; single-family in-law suites fall under residential building code and, where applicable, Fair Housing accessibility guidelines instead. Even so, most contractors treat ADA dimensions as the practical baseline because they are well-documented, widely tested, and easy to inspect against.

Minimum Thresholds That Apply

• 32-inch minimum clear door width, measured with the door open 90 degrees
• 60-inch diameter or T-shaped turning space somewhere in the bathroom
• Grab bar blocking installed even if bars are not mounted immediately
• Lever-style door and faucet hardware instead of round knobs

Going Beyond Code With Universal Design

Universal design pushes past the legal minimum. It assumes the occupant's mobility needs may change over the life of the suite, so a roll-in shower gets specified even for a currently ambulatory parent. Reinforced blocking behind every wall surrounding the toilet and shower, not just where bars are installed on day one, is a common upgrade. So is a comfort-height toilet paired with a wall-hung sink that leaves knee clearance underneath.

Pro tip: specify grab bar blocking during framing, not after drywall. Retrofitting blocking later usually means opening a finished wall.

Why Accessibility Standards Matter in a Garage Conversion

Garage conversions start with an inherited slab, inherited plumbing stub locations, and often a lower ceiling than new construction. Those constraints make accessible design harder to retrofit later, so decisions made at the design phase carry more weight than in a ground-up build.

ADA, Fair Housing, and Title 24 Overlap

Three separate frameworks intersect in a garage in-law suite bathroom:

1. ADA standards — the most detailed dimensional guidance, used as a design reference even where not legally mandated for a private residence
2. Fair Housing Act guidelines — apply to certain multifamily and rental configurations, less commonly triggered by single-family in-law suites
3. Title 24 — California's energy and building code, which governs insulation, ventilation, and fixture efficiency rather than clearances; homeowners layering in accessibility work alongside efficiency upgrades often review Title 24 energy compliance for garage ADU conversions at the same time

The U.S. Access Board publishes the full ADA Standards for Accessible Design, which remains the most authoritative technical reference for clearances, reach ranges, and fixture heights. Full technical criteria are available from the U.S. Access Board.

South Bay Permitting Context

• Plan check reviewers in San Jose and surrounding cities increasingly ask for a dimensioned bathroom layout, not just a fixture list
• Separate entrance requirements can shift where the bathroom sits relative to the suite's main door — see separate entrance rules for garage in-law suites in Santa Clara County
• Inspectors commonly flag insufficient turning space before they flag grab bar placement, so floor space takes priority in design review

Best Practices for an ADA Accessible Bathroom In-Law Suite Layout

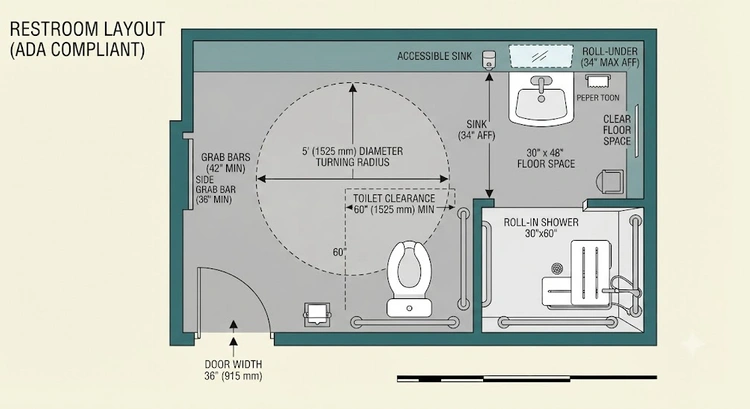

An ADA accessible bathroom in-law suite layout succeeds or fails based on floor space allocation decided before framing begins. The table below summarizes the core dimensional targets contractors work from.

Clear Floor Space and Turning Radius

• Draw the 60-inch turning circle first, then place fixtures around it — not the reverse
• A T-shaped turning space can substitute for a full circle in tight garage footprints
• Pocket doors recover 6 to 8 square feet compared to swing doors in a small bathroom

Fixture Placement and Grab Bars

1. Position the toilet with 16 to 18 inches of centerline clearance to the nearest wall
2. Install horizontal grab bars 33 to 36 inches above the floor at the toilet and shower
3. Set the shower controls within reach of a seated user, offset from the showerhead
4. Route drain lines to avoid raised curbs that block a roll-in shower

Rough-in sequencing matters as much as final dimensions. Coordinating plumbing, electrical, and ventilation rough-in before drywall goes up avoids the change orders that accessible bathrooms are prone to; see the electrical, plumbing, and HVAC rough-in service page for how that sequencing typically runs.

Warning: a curbless shower pan still needs a slope toward the drain. Skipping that slope during rough plumbing forces a full teardown later.

Common Layout Mistakes That Trigger Costly Rework

Most accessibility failures in garage bathroom conversions trace back to a handful of repeated errors, according to contractors who inspect these projects regularly.

Door and Clearance Errors

• Specifying a 30-inch door instead of the 32-inch clear width required for wheelchair passage
• Swinging a door into the turning space instead of out or using a pocket door
• Ignoring the approach clearance on the pull side of the bathroom door

Fixture Height and Slope Errors

• Mounting the sink too low, which blocks knee clearance instead of enabling it
• Installing a shower curb "for now" with plans to remove it later — rarely happens
• Skipping blocking behind tile because bars aren't in the initial fixture package
• Underestimating ceiling height needed for a ceiling-mounted lift track, a detail tied to broader minimum ceiling height requirements for garage conversions in California

Insight: a bathroom that "just barely" meets ADA minimums on paper often fails in practice once tile thickness and trim eat into the clear dimensions.

Real-World Layout Examples From South Bay Garage Conversions

Single-Car Garage Suite Example

A typical single-car garage runs roughly 12 by 22 feet. In that footprint, contractors commonly carve out an 8-by-6-foot bathroom along one long wall, freeing the remaining area for a sleeping and living zone. A roll-in shower occupies one corner, the toilet centers along the plumbing wall, and a wall-hung sink sits opposite the door swing to preserve the turning circle.

Detached Garage Suite Example

Detached garages, often larger at 20 by 20 feet or more, allow the bathroom to sit near the entry rather than at the rear, shortening the accessible path of travel from the door to the fixtures. That placement decision usually gets made alongside broader space planning; homeowners weighing overall room arrangement sometimes start from general single-car vs. two-car garage conversion layout ideas before narrowing in on the bathroom itself.

• Both examples keep the turning space clear of the door swing arc
• Both route the shower drain to the lowest point of the existing slab to minimize new slope-work
• Both reserve wall blocking at framing, even where the initial owner does not request grab bars

Frequently Asked Questions

Final Thoughts

An ADA accessible bathroom in-law suite layout works best when clearances, rough-in sequencing, and permitting requirements are mapped out together, before framing locks in the floor plan. Homeowners planning a garage in-law suite should request a dimensioned bathroom layout from their contractor early, confirm blocking and rough-in details in writing, and schedule the permit review before finishes are selected.
