San Jose in-law suite setback requirements can shrink a homeowner's usable garage footprint by more than 30 percent in some R-1 zoning districts, and that number catches a lot of first-time applicants off guard. A setback is simply the minimum distance a structure must sit away from a property line — front, side, or rear. Get it wrong and the whole permit application stalls, sometimes for months. For anyone weighing a detached garage ADU versus an attached garage conversion, the setback math is often the single factor that decides which path is even possible on a given lot.
This guide breaks down how setbacks work specifically for in-law suites carved out of an existing garage, where the rules loosen up, and where the city still holds a hard line. It also covers the common measurement mistakes that trip up otherwise well-prepared homeowners, plus the tools that make confirming a setback distance a five-minute job instead of a guessing game.
Contents
Setback Myths That Confuse San Jose Homeowners
Setback rules for in-law suites get muddled fast because homeowners mix up ADU (accessory dwelling unit) rules with JADU (junior accessory dwelling unit) rules, then apply whichever one they read about last. The two overlap but aren't identical, and the differences matter most at the property line. Anyone still sorting out the basic vocabulary should start with the breakdown of a JADU versus in-law suite before diving into setback math — it saves a lot of backtracking later.
The Detached Garage Exception Myth
A persistent myth holds that any detached garage automatically qualifies for a reduced setback once it's converted to living space. That's only partly true. The reduced distance — often as little as four feet from the side or rear line — applies to the existing footprint of the structure, not to any expansion beyond it. Add even a small bump-out for a bathroom or closet, and the whole addition may need to comply with standard setbacks instead. The exception protects what's already there, not what gets added.
Myth: Every Setback Is the Same Citywide
San Jose isn't one uniform zoning district. Lot width, lot depth, and the specific zoning designation all shift the numbers. A corner lot in Willow Glen and a standard interior lot in Almaden Valley can carry noticeably different side-yard requirements even though both fall under the city's general ADU ordinance. Homeowners comparing notes with a neighbor a few blocks over should treat that neighbor's numbers as a starting point, not gospel.
Pull the actual zoning designation for the parcel before assuming a neighbor's setback numbers apply — a difference of one zoning code can change a rear setback by several feet.
Common Mistakes That Delay In-Law Suite Permits
Most permit delays trace back to a handful of repeatable errors. None of them are exotic. They're measurement and paperwork mistakes that a careful first pass would have caught, and they show up constantly in projects that involve San Jose ADU garage conversion permits.
Measuring From the Wrong Property Line
The most common error is measuring from a fence, hedge, or sidewalk instead of the actual legal property line. Fences drift over decades. Landscaping gets added without anyone checking a survey first. A setback measured from a fence that sits two feet inside the real boundary can look compliant on paper and still fail inspection. Always measure from the recorded property line, never from a visible physical marker.
Ignoring Rear Yard Coverage Limits
Setbacks aren't the only constraint. Lot coverage — the percentage of the rear yard that can be built on — runs alongside setback rules and trips up just as many projects. A garage conversion might clear its setback distance easily and still get rejected because the combined footprint of the house, garage, and any other accessory structures eats up too much of the rear yard. Checking both numbers together, not just one, is the difference between a clean submission and a resubmittal.

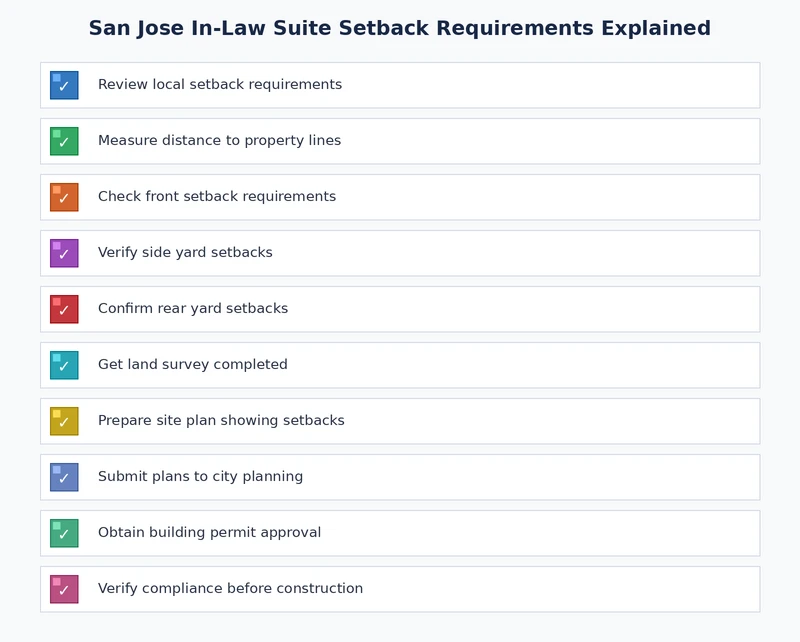

A short list of documents worth having in hand before submitting anything:
- Current recorded plat or parcel map showing exact property lines
- Existing structure footprint measurements, verified on-site
- Lot coverage calculation including all accessory structures
Tools and Methods for Confirming Setback Distances
Confirming a setback doesn't require guesswork, and it shouldn't be left to eyeballing a tape measure against a fence line. There are two reliable paths, and picking the right one depends on how close the project sits to the minimum distance.
Reading the Assessor's Parcel Map
The Santa Clara County Assessor's parcel map is free, public, and a good first stop for a rough sense of lot dimensions. It won't give pinpoint accuracy, but it's enough to sketch a preliminary plan and decide whether a project is even in the realm of possibility before spending money on anything more precise.
When to Hire a Licensed Surveyor
Once a project is within a foot or two of the minimum setback, a parcel map isn't good enough. That's when a licensed surveyor earns their fee. A survey stake at each corner removes all ambiguity, and plan reviewers at the city trust a stamped survey far more than a homeowner's tape-measure estimate. This step pairs naturally with confirming minimum ceiling height requirements, since both get checked during the same plan review pass.
| Configuration | Side Setback | Rear Setback | Notes |
|---|---|---|---|
| Existing attached garage conversion | No change from existing wall | No change from existing wall | Uses existing exterior walls, footprint unchanged |

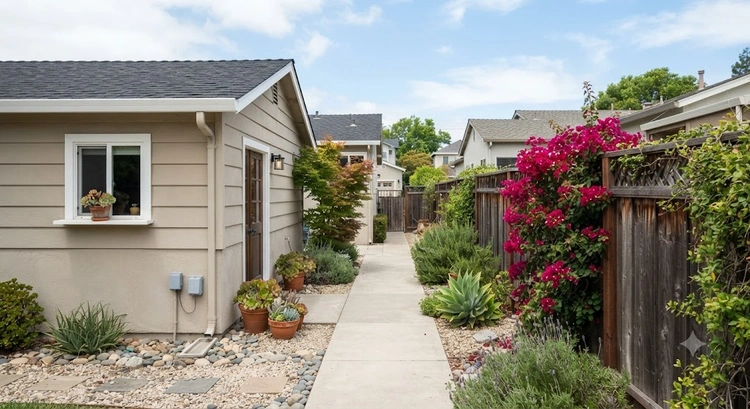

| Existing detached garage conversion | As little as 4 ft | As little as 4 ft | Reduced distance applies to existing footprint only |
| New detached in-law suite | 4–6 ft typical | 4–6 ft typical | Varies with lot size, height, and zoning district |
| Second-story addition above garage | Standard side setback | Standard rear setback | Added height often triggers standard, not reduced, setbacks |
When a Reduced Setback Makes Sense — and When It Doesn't
Reduced setbacks exist to make garage conversions practical, not to hand out a blanket exception for every accessory structure. Knowing which category a project falls into early saves a lot of redesign later. For a full walkthrough of how city rules apply specifically to San Jose garage ADU setback requirements, that resource lays out the ordinance language in more detail than fits here.
Cases Where the Reduced Setback Applies
A reduced setback almost always applies when the conversion stays entirely within an existing garage's footprint, keeps the same roofline, and doesn't add height. This is the cleanest, fastest path through plan review, and it's why so many in-law suite projects specifically target garages that are already close to the property line — the structure is grandfathered in, and the conversion inherits that advantage.
Cases Where Standard Setbacks Still Apply
Standard setbacks kick back in the moment a project expands the footprint, adds a second story, or demolishes more than half the existing walls. At that point the city treats it less like a conversion and more like new construction, and new construction doesn't get the discount. Homeowners comparing costs across cities should also look at how setback requirements shift across South Bay cities, since Santa Clara, Sunnyvale, and Campbell each handle the same scenario a little differently.
According to the California Department of Housing and Community Development, state law caps how restrictive local setback ordinances can be for ADUs and JADUs, which is part of why San Jose's reduced four-foot standard exists in the first place. Local code still governs the details, but it can't go below the state floor.
Frequently Asked Questions
What is the minimum setback for an in-law suite in a San Jose garage?
For conversions that stay within an existing garage's footprint, side and rear setbacks can be as low as four feet, since the structure is already built at that distance. New construction typically needs more.
Do San Jose in-law suite setback requirements differ from ADU setback rules?
They largely follow the same ordinance, but JADUs and detached ADUs can trigger slightly different distances depending on height and whether the footprint is expanded.
Can a homeowner build closer to the property line than the standard setback?
Only when converting an existing structure that already sits within the reduced distance. Expanding the footprint generally forces compliance with the standard setback instead.
How can a homeowner confirm the exact setback for their lot?
Start with the Santa Clara County Assessor's parcel map for a rough estimate, then hire a licensed surveyor if the project sits close to the minimum distance.
Final Thoughts
Setback rules are one piece of a much larger compliance picture that also includes energy code and Title 24 requirements — the kind of detail worth reviewing on the permits and Title 24 energy compliance page before a project moves past the planning stage. Anyone weighing a garage-to-in-law-suite conversion should pull the parcel map today, confirm the real property lines, and get a straight answer on setback distance before committing to a floor plan.
