Jason Park stood in a client's single-car garage in the Rose Garden neighborhood last spring, tape measure in hand, and watched the homeowner's face fall. The garage read 210 square feet — well short of what state law requires for a junior accessory dwelling unit. That single measurement decided the entire project scope. Understanding garage JADU square footage requirements before a single wall comes down is the difference between a smooth permit approval and a redesign six weeks in. San Jose homeowners exploring a garage-to-JADU conversion need the numbers first, the design second.

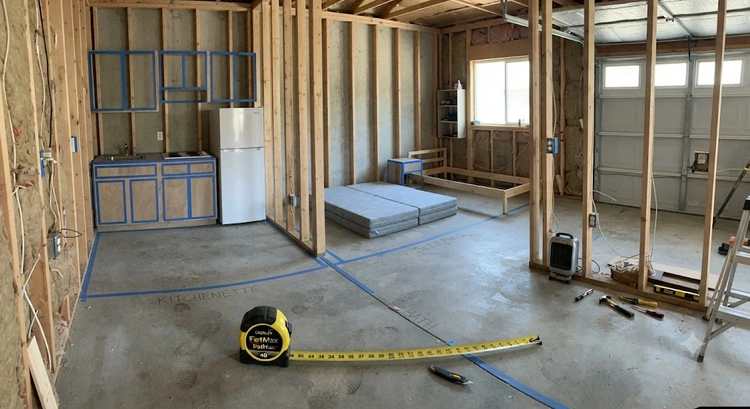

Tape measure and floor plan showing garage JADU square footage requirements in a San Jose garage
Figure 1 — Measuring an existing garage against JADU square footage requirements.

State law sets a hard ceiling of 500 square feet for a JADU. There is no statewide minimum beyond basic habitability, but Santa Clara County and San Jose building code push practical minimums much higher once a bathroom, kitchenette, and sleeping area are factored in. Most successful conversions land between 300 and 500 square feet, depending on garage footprint and household need.

This guide breaks down the numbers, the tradeoffs, and the mistakes homeowners make when sizing a garage JADU. It draws on measurements and permit outcomes from South Bay projects, not generic averages.

JADU Size Basics vs Advanced Space Planning

Basic garage JADU square footage requirements start with California state law. Advanced planning goes further, weighing structural columns, existing plumbing stubs, and driveway access. Both layers matter before design work begins.

State Minimum and Maximum Square Footage

California Government Code caps a JADU at 500 square feet. Local jurisdictions cannot raise that ceiling. San Jose follows the state cap without modification.

  • Maximum: 500 square feet, no exceptions at the state level.
  • No statewide minimum, but functional minimums apply once code-required rooms are added.
  • Existing garage footprint sets the real-world ceiling — a 400-square-foot garage cannot become a 500-square-foot JADU without an addition.
  • Efficiency kitchen space factors directly into total square footage; see the efficiency kitchen requirements for a garage JADU for the exact clearances required.
Never design to the 500-square-foot cap before confirming the garage's actual interior dimensions. Framing thickness alone can shave 15 to 20 square feet off the usable number.

How Lot Size and Garage Shape Constrain Space

Lot size does not limit JADU square footage directly. Garage shape and setback lines do. A narrow, deep garage forces a galley-style layout. A square garage allows more flexible zoning of sleep, kitchen, and bath areas.

  1. Measure interior clear dimensions, not exterior wall-to-wall.
  2. Subtract space for required setbacks if any wall expansion is planned.
  3. Flag any shared walls with the primary residence — these affect fire-rating requirements and usable footprint.
  4. Confirm existing slab condition; a cracked or undersized slab can reduce buildable area.

Weighing the Tradeoffs of Different Garage JADU Sizes

Bigger is not automatically better. Every additional square foot adds cost, and Santa Clara County permitting scrutiny increases as a JADU approaches the 500-square-foot cap.

Pros of Staying Near the Minimum

  • Lower construction cost per project, since materials and labor scale with area.
  • Faster plan check — smaller, simpler layouts draw fewer reviewer questions.
  • Reduced Title 24 compliance burden; smaller conditioned space simplifies energy calculations.
  • Easier utility separation when the unit stays compact and close to existing service lines.

Cons of Maxing Out Square Footage

Pushing toward 500 square feet increases rental income potential but adds real friction.

Square Footage TierTypical LayoutCommon UseRelative Cost
250–300 sq ftStudio, combined sleep/living, single wet wallHome office, rental unitLowest
300–400 sq ftSeparate bath, efficiency kitchen, sleeping nookIn-law suite, long-term rentalModerate
400–500 sq ftFull bath, kitchenette, distinct bedroom zoneAging-in-place suite, family member housingHighest allowed under JADU cap

Common Square Footage Mistakes and How to Fix Them

Most square footage disputes during plan check trace back to a handful of repeat errors.

Miscounting Usable vs Gross Square Footage

Homeowners often measure the garage slab and assume that number is the JADU size. It is not.

  • Interior framing typically removes 4 to 6 inches per wall from usable space.
  • Closets and mechanical closets count toward gross square footage but reduce livable area.
  • Fix: measure finished interior dimensions after accounting for new insulation and drywall thickness.

Ignoring Mechanical and Circulation Space

HVAC equipment, water heaters, and electrical subpanels all need floor or wall space. Skipping this step forces a redesign mid-permit.

  1. Reserve at least 9 square feet for a compact water heater or mini-split air handler.
  2. Allow 30-inch clearance in front of electrical panels per code.
  3. Budget hallway or turning-radius space for ADA-adjacent layouts, especially in units aimed at aging family members.
  4. Coordinate utility routing early — see garage ADU utility separation explained for how separate metering affects wall placement.
Mechanical space is the single most underestimated line item in early square footage sketches. Add it before finalizing the floor plan, not after.

Real San Jose Garage JADU Layouts by Size

Actual South Bay projects show how theoretical garage JADU square footage requirements play out on real slabs.

Single-Car Garage Conversions

A standard single-car garage measures roughly 220 to 260 square feet of interior space. That falls short of a comfortable full JADU without an addition.

  • Most single-car conversions require a bump-out or side addition to reach 300+ square feet.
  • Layouts typically combine sleeping and living space into one zone.
  • Wet wall placement (kitchen and bath sharing plumbing) is standard to save space.

Two-Car Garage Conversions

A two-car garage runs 400 to 480 square feet, close to the JADU maximum without any structural addition.

  1. Full bath and separate kitchenette typically fit without compromise.
  2. Distinct bedroom zone separated by a half-wall or sliding partition is common.
  3. Storage loss is minimal relative to the finished square footage gained.

Foundation condition still matters at this size. Review foundation requirements when converting a detached garage into living space before committing to a layout.

Infographic comparing garage JADU square footage requirements by garage size
Figure 2 — Garage JADU square footage requirements by garage type, at a glance.

Best Practices for Planning Garage JADU Square Footage

Successful projects follow a consistent sequence. Skipping steps causes redesigns.

Work Backward From Room Function

  • List every required room: sleeping area, bathroom, kitchenette, storage.
  • Assign minimum functional square footage to each — a compact bathroom needs roughly 35 to 40 square feet.
  • Sum the totals and compare against the existing garage footprint before finalizing the concept.
  • Adjust room proportions, not the overall footprint, when the math falls short.

Coordinate Early With Title 24 and Permitting

Energy compliance calculations depend directly on conditioned square footage. Larger units face stricter insulation and glazing requirements.

  1. Pull preliminary Title 24 numbers before finalizing window and door placement.
  2. Reference Title 24 energy compliance basics for detached garage ADUs during early design.
  3. Confirm permit timeline expectations against project size — larger units take longer to review.
  4. Check natural light and egress window sizing against square footage; see natural light and window requirements for California ADUs.

According to the California Department of Housing and Community Development, JADU square footage rules are set at the state level and cannot be reduced by local ordinance, though local jurisdictions may add process requirements.

Matching Square Footage to How the JADU Will Be Used

Intended use should drive the target square footage. Rental units and family housing have different priorities.

Rental Income Focused JADUs

  • Target 350 to 450 square feet for strongest rent-to-cost ratio in the South Bay market.
  • Prioritize a full kitchenette over extra closet space — tenants pay more for cooking capability.
  • Separate utility metering improves long-term rental management. See shared vs separate utility meters for your garage JADU.

Family and Caregiver Focused JADUs

Units housing aging parents or adult children weigh accessibility over square footage efficiency.

  1. Prioritize wider doorways and turning radius over maximizing bedroom size.
  2. Budget extra square footage for grab bars and roll-in shower clearance.
  3. Coordinate bathroom layout early — see ADA-accessible bathroom layout for a garage in-law suite.
A caregiver-focused JADU rarely needs the full 500 square feet. Accessibility clearances matter more than raw floor area.

Next Steps

  1. Measure the existing garage's interior clear dimensions before sketching any layout.
  2. List required rooms and assign minimum functional square footage to each one.
  3. Pull preliminary Title 24 energy figures based on the target conditioned square footage.
  4. Decide whether the JADU is rental-focused or family-focused, since that decision reshapes the floor plan.
  5. Schedule a site visit with San Jose Garage Conversions to confirm buildable square footage against state and local limits.
