A converted garage in Willow Glen sat empty for two winters after the drywall went up because the contractor installed a 9,000 BTU wall unit sized for a bedroom, not a space with a single-pane roll-up door replaced by studs and R-13 batts pressed against a slab that never saw insulation. The homeowner ran space heaters through January. That failure is the reason mini split sizing garage conversion work demands more than a chart pulled from a manufacturer's brochure. Garages behave differently than living rooms: exposed slabs, minimal roof insulation in older framing, and orientation toward hot afternoon sun all distort standard load assumptions.
Contents
Why Standard BTU Charts Fail Garage Conversions
Slab, Envelope, and the Missing Attic Buffer
Most online BTU calculators assume a conditioned space bounded by other conditioned spaces on at least two sides. A garage conversion rarely meets that assumption. The slab sits directly on grade, often uninsulated beneath, and the former garage door opening becomes a wall assembly that, even when built to code, carries a different thermal signature than a wall that has been part of the original house envelope for decades. Mini split sizing garage conversion estimates that ignore slab-edge loss and single-exposure walls routinely undershoot by 15 to 25 percent in older South Bay housing stock built before 1978.
Roof framing compounds the issue. A converted garage frequently sits under a low-slope roof with minimal batt insulation and no attic buffer separating the living space from summer heat gain. Homes with adjacent flooring changes, discussed in Flooring Options for a Garage-to-Studio Conversion, should factor slab treatment into the load calculation as well, since a floated subfloor over rigid foam changes the surface temperature the unit must offset.
Why Manual J Beats Square-Footage Guessing
The "20 BTU per square foot" rule persists because it is easy to repeat, not because it is accurate. Manual J load calculations weigh window-to-wall ratio, insulation R-value by assembly, air infiltration rate, and local design temperature data specific to the zip code. San Jose's design temperatures differ from Los Gatos foothill microclimates by several degrees, and that gap changes equipment selection at the margins between model sizes.
A Manual J calculation costs a fraction of what a wrong-sized compressor costs in wasted electricity over ten years — never skip it to save an afternoon.
Contractors performing the calculation correctly will also account for internal heat gain from occupants and electronics, which matters more in a home office than in a bedroom conversion. A studio with two monitors and a small kiln for ceramics work carries a different internal load profile than a quiet guest suite, even at identical square footage.
Matching Mini-Split Capacity to Garage Conversion Scenarios
Home Offices and Studios
A single-zone 9,000 to 12,000 BTU unit typically covers a 300 to 450 square foot detached office or studio with reasonable insulation and one or two window openings. Undersizing shows up first as an inability to recover from a hot afternoon spike rather than as a failure to maintain steady-state temperature, since the compressor keeps pace with baseline loss but cannot claw back a 15-degree swing before the workday ends. Readers weighing envelope tradeoffs between garage types may find the structural context in Detached vs Attached Garage ADU Conversions: Pros and Cons useful, since attached conversions benefit from shared-wall thermal mass that detached structures lack entirely.
JADUs and In-Law Suites
Full living spaces with kitchenettes and bathrooms introduce moisture loads that a simple office does not carry. Shower use and cooking add latent load the compressor must remove, which pushes sizing toward the higher end of the calculated range rather than the midpoint. A 500 to 600 square foot JADU with a kitchenette commonly lands in the 15,000 to 18,000 BTU range, sometimes split across a multi-zone system if the bathroom and sleeping area are separated by a door that stays closed most of the day. Multi-zone configurations also allow independent setpoints, which matters for households where an in-law suite runs on a different schedule than the main house.

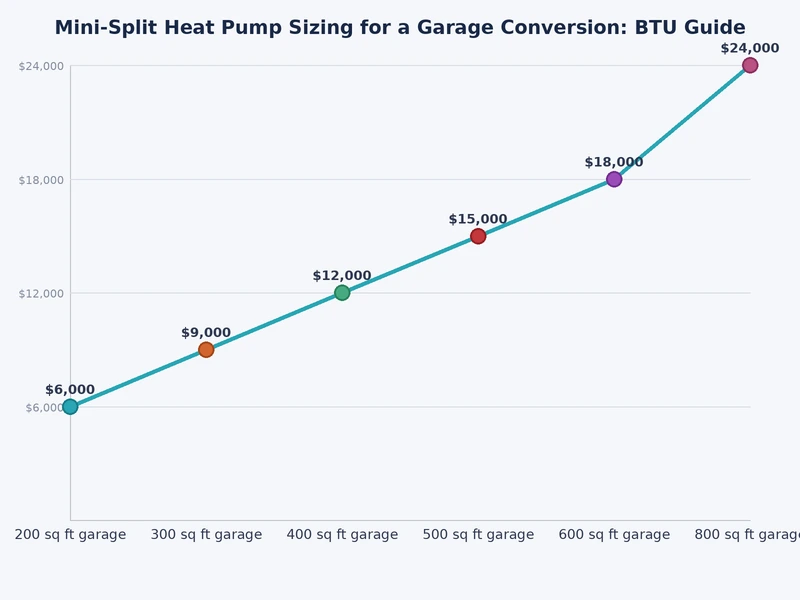

| Conversion Type | Typical Area | Recommended Capacity | Zone Configuration |
|---|---|---|---|
| Home Office / Studio | 250–400 sq ft | 9,000–12,000 BTU | Single-zone |
| Detached Garage Studio | 350–500 sq ft | 12,000–15,000 BTU | Single-zone |
| JADU with Kitchenette | 450–600 sq ft | 15,000–18,000 BTU | Single or multi-zone |
| Full In-Law Suite | 550–750 sq ft | 18,000–24,000 BTU | Multi-zone |
These ranges assume standard Title 24 insulation compliance; suites built to a lower assembly standard require upward adjustment, and the specific requirements are outlined in Title 24 Insulation Requirements for Converted Garages Explained.
Keeping a Correctly Sized System Performing Long-Term
Filters, Refrigerant Charge, and Airflow Drift
Correct sizing at installation does not guarantee correct performance five years later. Clogged filters reduce airflow across the indoor coil, which drops effective capacity even though the compressor itself remains unchanged. Refrigerant charge drifts slightly over time through normal fitting expansion and contraction, and an undercharged system behaves like an undersized one regardless of the nameplate BTU rating. Quarterly filter cleaning and an annual refrigerant check keep the as-installed capacity matching the as-calculated load.
A dirty filter can silently erase 10 percent of rated capacity — the compressor is not the culprit when comfort complaints start.
Seasonal Performance Checks
Heat pump systems face their hardest test not in peak summer but during shoulder-season humidity swings, when the unit must dehumidify without overcooling. A correctly sized system in a JADU will hold both temperature and humidity within comfortable range; one that only satisfies the thermostat while leaving the space clammy is oversized, since it short-cycles before running a full dehumidification cycle. This pairs closely with water heating decisions covered in Tankless vs Mini-Tank Water Heaters for Garage ADU Conversions, since both systems interact with the same envelope moisture load.
Practical Shortcuts for Getting Sizing Right the First Time
Questions to Ask Before Signing a Proposal
Homeowners can filter competent proposals from guesswork quickly by asking a short set of questions before signing:
- Was a Manual J calculation performed, or was capacity chosen from a square-footage chart?
- Does the proposal account for slab-edge loss and roof assembly R-value specifically?
- Is the unit rated for the region's design temperature, including heating performance below 40 degrees?
A contractor unable to answer these directly is likely relying on rule-of-thumb sizing, which is precisely the pattern that leads to the undersized-unit failures described earlier.
Where Title 24 Compliance Enters the Picture
Equipment selection is not purely a comfort decision in California; it is also a compliance checkpoint. Title 24 energy calculations require documented equipment efficiency ratings (SEER2 and HSPF2) tied to the calculated load, and mismatched paperwork is a common cause of plan check delays. Full requirements and the compliance workflow are detailed on the Permits, Title 24 & Energy Compliance service page, which coordinates directly with the mechanical permit submission.
Title 24 does not merely check a box for efficiency — it forces the same load discipline that prevents an undersized unit from ever reaching the field.
For readers wanting a broader technical reference on heat pump operating principles beyond garage-specific sizing, the Wikipedia entry on heat pumps offers a useful baseline on compressor cycles and coefficient of performance that underlies all of the sizing logic above.
Frequently Asked Questions
What size mini split does a 400 square foot garage conversion need?
Most 400 square foot conversions with standard Title 24 insulation fall in the 9,000 to 12,000 BTU range, though slab insulation and window count can shift that estimate by a few thousand BTU in either direction.
Can an oversized mini split cause humidity problems?
Yes. An oversized unit satisfies the thermostat quickly and shuts off before completing a full dehumidification cycle, leaving the space cool but clammy, particularly during shoulder-season months.
Does a converted garage need a different load calculation than a bedroom addition?
It does. The uninsulated slab, single-exposure walls from the former door opening, and often-thinner roof assembly all shift the calculation compared to a room built within the existing conditioned envelope.
Is a multi-zone system necessary for a JADU with a kitchenette?
Not always, but multi-zone systems are common when the bathroom, sleeping area, and living space are separated by doors, since independent setpoints handle the moisture and occupancy differences between rooms more efficiently.
How often should filters be cleaned to maintain rated capacity?
Quarterly cleaning is standard for garage conversions, since these spaces often see more dust from adjacent storage use than typical bedrooms.
Does Title 24 require a specific mini split efficiency rating?
Title 24 ties required SEER2 and HSPF2 ratings to the calculated load and climate zone, which is why equipment selection and energy compliance paperwork must be coordinated rather than handled separately.
What is the biggest sizing mistake in garage conversions?
Relying on a square-footage rule of thumb instead of a Manual J calculation is the most common error, and it consistently undersizes capacity in older South Bay homes with uninsulated slabs.
Correct BTU sizing is not a preference between contractors — it is the single decision that determines whether a converted garage feels finished or merely built.
