Title 24 Insulation Requirements for Converted Garages Explained

Roughly 30 percent of the energy a typical California home loses through its envelope escapes through under-insulated walls and ceilings, which is exactly why title 24 insulation requirements garage conversion projects get flagged so often during plan check. A garage was never designed as conditioned living space, so its walls, slab, and roof assembly usually fall far short of the thermal performance the California Energy Code demands once that space becomes a bedroom, office, or JADU. Contractors who skip this step almost always end up redoing wall cavities after a failed inspection, which costs more in labor than doing it right the first time. Anyone planning a garage conversion with a separate entrance or any other habitable layout needs to treat insulation as a load-bearing part of the design, not an afterthought bolted on before drywall.

Most homeowners assume insulation is a simple checkbox, but Title 24 Part 6 actually sets prescriptive R-values by climate zone, component type, and even the framing method used in the assembly. Santa Clara County sits mostly in Climate Zone 4, which carries its own specific thresholds for wall, ceiling, and slab-edge insulation that differ from coastal or inland zones. Getting the numbers wrong on paper is one of the fastest ways to stall a permit, and it compounds problems already covered in guides on Title 24 energy compliance checklists for garage conversions.

This guide breaks down exactly what the energy code expects from a converted garage, walks through real compliance scenarios from South Bay jobs, and clears up the myths that keep tripping up otherwise solid projects.

Why Title 24 Treats Garage Conversions Differently

A detached or attached garage starts life as unconditioned space, which means its original construction never had to account for heating or cooling loads at all. Once that structure gets reclassified as habitable square footage, the entire envelope has to be brought up to current energy standards rather than whatever code applied when the garage was originally framed. That distinction matters enormously for anyone budgeting a project, since it usually means gutting walls down to the studs even when the existing framing looks perfectly sound.

What Title 24 Actually Regulates

The California Energy Code, enforced locally under the umbrella of permits and Title 24 energy compliance, governs far more than wall insulation alone. It sets standards for ceiling and roof assemblies, slab-edge and under-slab insulation, window U-factors, duct sealing, and air infiltration rates measured through blower door testing. Every one of these components has to work together as a single system rather than as isolated checkboxes on a plan set.

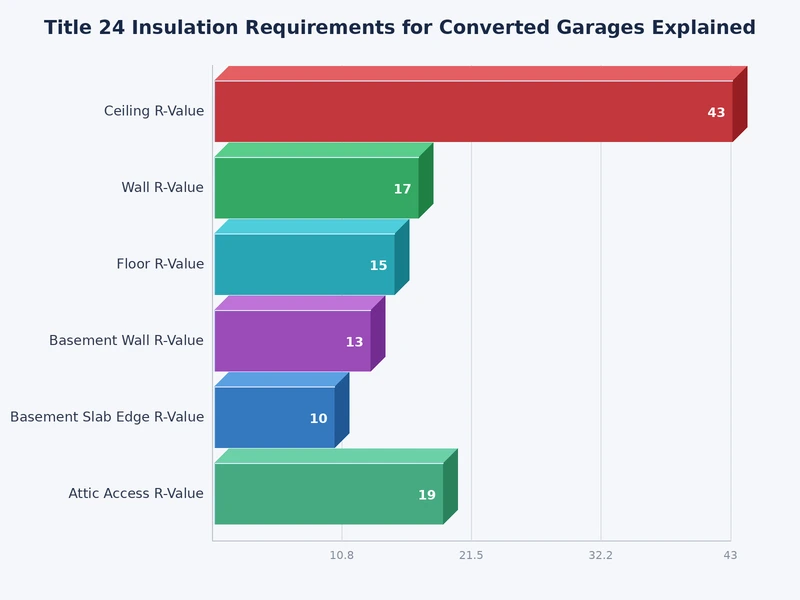

• Wall cavity insulation, typically R-13 to R-21 depending on framing depth
• Ceiling or roof deck insulation, often R-30 or higher
• Raised floor insulation where the conversion sits over a crawlspace
• Fenestration U-factor and solar heat gain coefficient limits for new windows

The Compliance Path for Existing Structures

Existing garages get evaluated under the addition and alteration provisions rather than the new construction standards, which sounds like a break but often is not in practice. Plan checkers in Santa Clara County frequently require full compliance for the converted area because the change of occupancy triggers a complete energy analysis. Homeowners exploring Title 24 energy compliance basics for detached garage ADUs should expect the reviewing jurisdiction to treat the space as new construction for insulation purposes, even though the walls are technically existing.

Never assume an older garage's existing insulation, if any exists at all, will satisfy current plan check requirements. Budget for a full envelope upgrade from the start.

How Insulation Requirements Play Out in Actual South Bay Conversions

Theory only goes so far, and the way these requirements actually land on a jobsite depends heavily on the original structure's framing depth, roof pitch, and foundation type. Two projects with nearly identical square footage can require completely different insulation strategies once the plan checker gets involved.

A Single-Car Garage Home Office

A typical single-car garage converted into a home office in San Jose usually has 2x4 wall framing, which caps standard batt insulation at R-15 unless the crew adds continuous rigid foam sheathing on the exterior face. That combination pushes the assembly's effective R-value high enough to satisfy Climate Zone 4 requirements without resorting to deeper, more expensive framing. This same detail matters for anyone reviewing the cost of converting a garage into a home office in San Jose, since the rigid foam layer adds real material and labor cost that budget estimates sometimes miss entirely.

A Detached Garage ADU

Detached garage ADUs face a stricter ceiling requirement because the roof deck is almost always the weakest point in the existing envelope. Crews frequently need to add rigid foam above the roof sheathing or dense-pack the rafter bays with cellulose to hit R-30 without crushing the insulation's loft. Anyone sizing one of these projects should cross-reference detached garage ADU size limits by South Bay city, because larger footprints multiply both the insulation material cost and the number of roof penetrations that need sealing.

Insulation Materials and Assemblies That Meet the Standard

Choosing the right material matters as much as hitting the target R-value, since installation quality determines whether that R-value shows up in the field or only on paper. A perfectly rated batt installed with gaps and compression performs nowhere near its rated number once a blower door test measures actual air leakage.

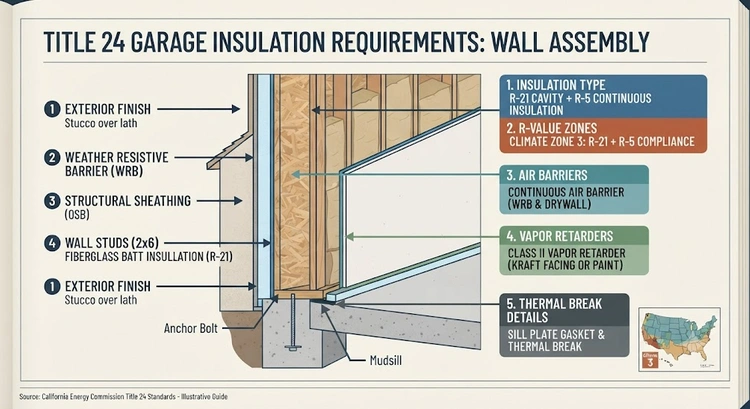

Wall and Ceiling Assemblies

• Standard fiberglass batt for straightforward 2x6 wall cavities

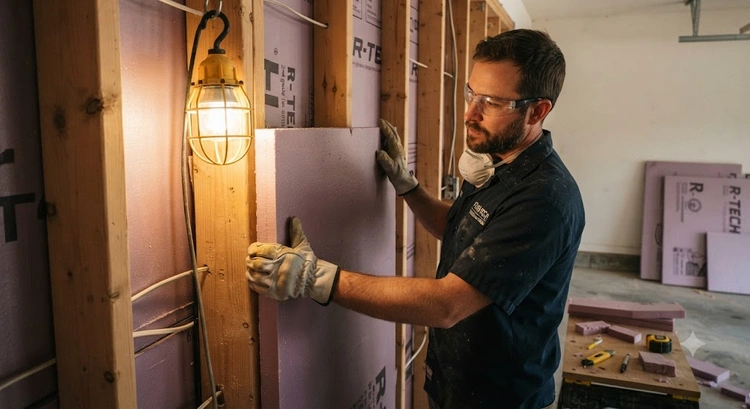

• Continuous exterior rigid foam to eliminate thermal bridging at studs
• Blown or dense-pack cellulose for irregular ceiling cavities and retrofits
• Closed-cell spray foam where air sealing and insulation need to happen in one step

Most South Bay conversions lean on a hybrid approach: batt or blown insulation in the field of the cavity paired with rigid foam or spray foam at the trickiest transitions, like rim joists and header framing near garage ADU utility separation penetrations.

Rigid Foam, Batt, and Spray Foam Compared

Batt insulation remains the cheapest option per square foot, but it is also the least forgiving of installation mistakes, since even minor compression or gaps sharply reduce its effective performance. Rigid foam boards cost more upfront yet deliver consistent R-value regardless of installer skill, which is why many crews specify them for exterior continuous insulation on retrofit walls. Spray foam commands the highest price of the three but solves air sealing and insulation simultaneously, often making it the fastest path to a passing blower door result on a tight schedule.

Common Insulation Failures and How to Fix Them Before Inspection

Insulation problems rarely show up as obvious defects; they hide behind drywall until a blower door test or a thermal imaging camera exposes them during final inspection. Catching these issues before drywall goes up saves weeks of schedule and avoids the cost of reopening finished walls.

Thermal Bridging at Studs and Headers

Wood framing conducts heat far more readily than the insulation between the studs, which creates a thermal bridge that shows up as a cold stripe on an infrared camera. Doubled headers above windows and doors are especially prone to this problem because the solid wood mass leaves no room for cavity insulation at all. The fix almost always involves a layer of continuous rigid foam on the exterior side of the framing, which breaks the thermal path before it reaches the interior finish.

Failing the Blower Door Test

Air leakage failures are the most common reason a garage conversion gets sent back after its energy inspection, and the culprit is usually penetrations rather than the insulation itself. Recessed lighting cans, plumbing stacks, and electrical rough-in points documented in detached garage conversion electrical panel guidance all need dedicated air sealing before insulation goes in. Caulking or foaming these penetrations before the insulation contractor arrives resolves the overwhelming majority of blower door failures on first retest.

A blower door failure is almost never an insulation problem in disguise. Chase down the air leaks first, then reinspect before touching the insulation again.

Myths About Title 24 Insulation That Cost Homeowners Money

Bad assumptions about insulation requirements cause more permit delays than almost any other single issue in garage conversion projects. Clearing up these myths early saves both money and schedule once construction starts.

"Any Insulation Passes Inspection"

Plenty of homeowners assume that stuffing fiberglass batt into the wall cavity automatically satisfies the energy code, regardless of the R-value printed on the packaging. Inspectors check the batt's rating against the specific value called out on the approved plan set, and a mismatch triggers a correction notice on the spot. The insulation has to match the plans exactly, not just look reasonably thick to the naked eye.

Why R-Value Alone Isn't the Whole Story

A high R-value rating on the package does not guarantee compliance if the installation leaves gaps, compresses the material, or skips continuous insulation where the plans require it. According to the U.S. Department of Energy's guidance on home insulation, effective performance depends as much on installation quality as on the material's nominal rating. Homeowners who fixate purely on the R-value number while ignoring installation detail often end up redoing work that looked fine until the inspector opened a wall cavity for a closer look.

Weighing the Tradeoffs of Different Compliance Strategies

Two paths exist for demonstrating Title 24 compliance, and picking the right one for a given garage conversion can save thousands of dollars in unnecessary upgrades elsewhere in the building.

Prescriptive Path Pros and Cons

The prescriptive path simply requires hitting fixed R-values for each component, which makes it easy for a plan checker to verify and easy for a contractor to price. Its downside shows up when one component, like a shallow rafter roof, cannot physically accommodate the required insulation thickness without expensive furring or a roof-deck build-up.

• Pro: predictable, well-documented requirements with no energy modeling needed
• Pro: faster plan check turnaround in most jurisdictions
• Con: inflexible when existing framing can't fit the prescribed insulation depth
• Con: can force expensive structural modifications just to gain cavity depth

Performance Path Pros and Cons

The performance path uses energy modeling software to demonstrate that the whole building, not each individual component, meets an overall energy budget. This approach lets a weak ceiling assembly get offset by stronger wall insulation or higher-efficiency windows and mechanical equipment, which often fits awkward garage geometries better than the prescriptive path. The tradeoff is added upfront cost for the energy consultant and modeling report, plus a slightly longer plan check cycle while the jurisdiction reviews the calculations.

Frequently Asked Questions

Insulation is not the line item to shortcut on a garage conversion; it is the line item that decides whether the whole project passes inspection.
