What happens when a garage sits just three feet from the side property line, but the new ADU rules say it needs to be four? That single foot can determine whether a conversion sails through plan check or stalls for months waiting on a variance. San Jose ADU setback requirements are more forgiving than most people assume, especially for garages that are already built, but the details around expansions, detached builds, and rear-yard placement trip up even experienced homeowners. The short answer: existing garage footprints are usually grandfathered in, while any new square footage triggers a fresh set of rules that depend on lot type, garage location, and whether the structure sits within the city's rear 800 square feet allowance described in detached garage ADU setback requirements across South Bay cities.
Contents
Understanding San Jose ADU Setback Requirements
Setbacks exist to keep a minimum buffer between structures and property lines, mostly for fire safety, privacy, and access for emergency crews. San Jose ADU setback requirements largely mirror the state's default framework under California's ADU statute, but the city layers on its own zoning code refinements for specific lot configurations. The baseline that most people encounter is a four-foot minimum from side and rear property lines for a new detached ADU, while an existing garage that's being converted in place typically keeps its original setback, even if that's less than four feet.
Why Setbacks Exist in the First Place
Fire separation is the biggest driver. A structure sitting too close to a neighbor's fence line can complicate fire crew access and increase the risk of flame spread between properties. Privacy and shading also factor in, particularly for rear-yard builds that suddenly introduce windows facing a neighbor's patio. San Jose's planning department leans on these same principles that show up in broader California building and zoning practice, which draws heavily from long-established land use doctrine described on Wikipedia's overview of setback regulations.
Pro tip: if a garage was legally built decades ago at a nonstandard setback, that distance is almost always preserved for a conversion — but any new addition attached to that garage has to meet current-day rules.
Municipal Code Versus State Law
California's statewide ADU law sets a ceiling on how restrictive local jurisdictions can be, and San Jose's municipal code operates within that ceiling rather than exceeding it. That means San Jose ADU setback requirements can't be more restrictive than the state's four-foot standard for detached units, though the city can and does add nuance around lot coverage, height near property lines, and how setbacks interact with existing accessory structures. For garage-to-JADU conversions specifically, the square footage cap discussed in San Jose's 500 square foot JADU rule often matters more than setback distance, since most detached garages already fall inside that ceiling.
Best Practices for Meeting Setback Rules
Getting setback compliance right the first time saves weeks of resubmittal cycles. The single best habit is confirming the existing garage footprint against the recorded property survey before any design work begins, rather than trusting a fence line or an old plat map that might not reflect actual boundaries.
Measuring From Property Lines Correctly

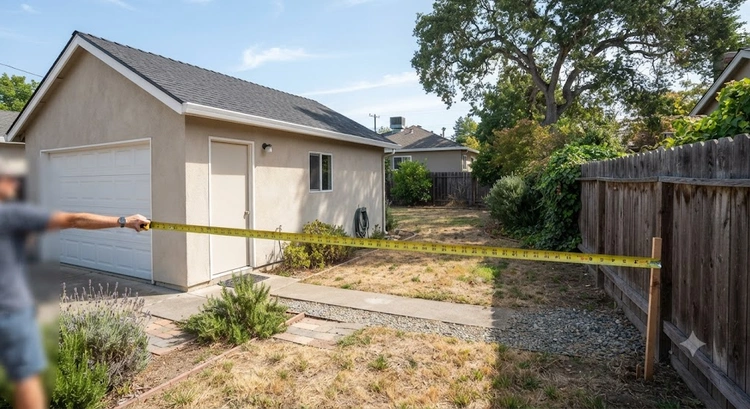

Setback distance is measured from the property line to the nearest exterior wall face, not from a fence, hedge, or sidewalk. This distinction catches people off guard constantly, since fences in older San Jose neighborhoods are rarely installed exactly on the recorded line. A licensed surveyor stake-out is the gold standard, though many contractors will do a rough field check first using existing corner monuments to flag obvious problems before paying for a full survey.
Working With Existing Nonconforming Garages
A garage built at two feet from the side line decades ago, before current zoning took effect, is considered legally nonconforming. Converting that structure into living space generally doesn't require bringing the footprint up to current setback standards, as long as no new square footage extends further into the setback zone. Problems arise when a homeowner wants to bump out a wall for a bathroom or add a small footprint expansion — that expansion has to meet today's rules even if the rest of the garage doesn't.

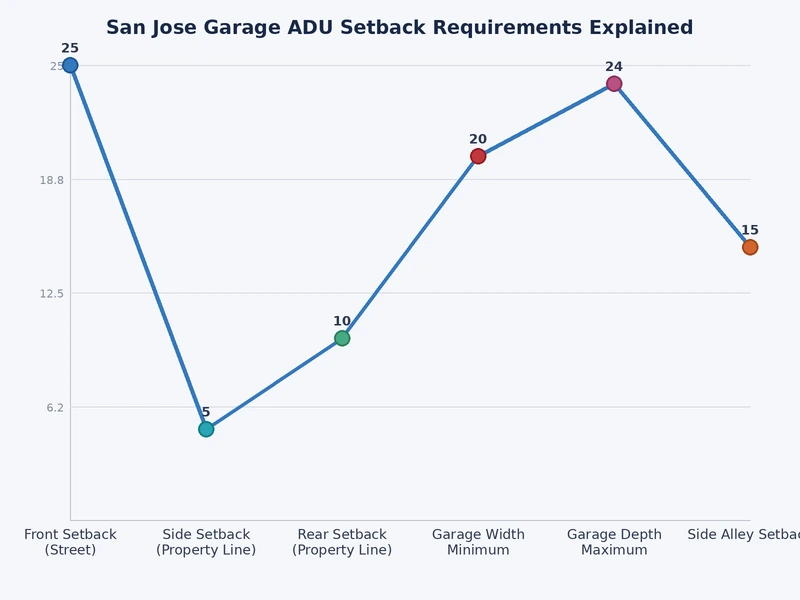

| Scenario | Side Setback | Rear Setback | Notes |
|---|---|---|---|
| Existing attached garage, in-place conversion | Preserves existing | Preserves existing | No new footprint added |
| New detached ADU (single story) | 4 ft minimum | 4 ft minimum | State-mandated ceiling on restrictiveness |
| Detached ADU converted from existing garage | Preserves existing | Preserves existing | Applies even if under 4 ft |
| Expansion beyond existing garage walls | 4 ft minimum | 4 ft minimum | New square footage triggers current code |
| Second story addition above garage | Varies by height | Varies by height | Height-graduated setbacks may apply |

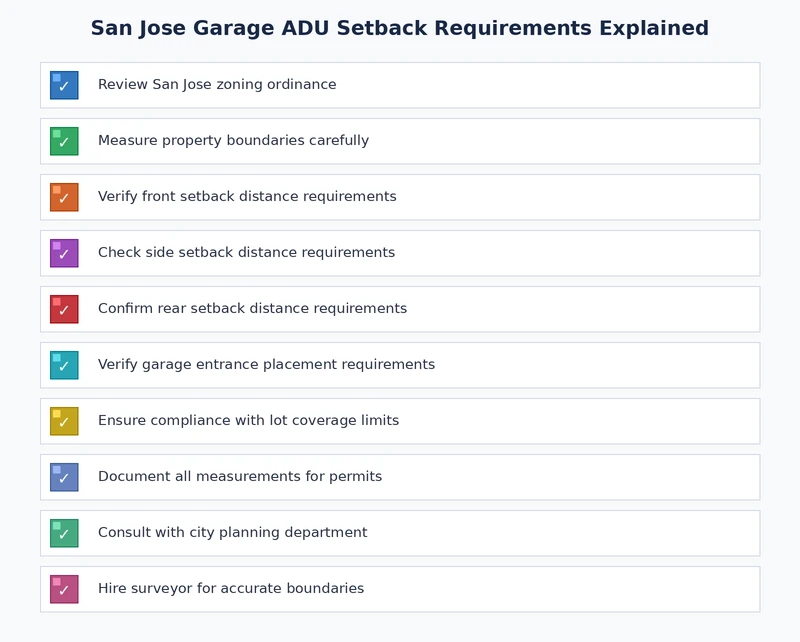

Tools and Documentation for Verifying Setbacks
Before pulling permits, a handful of documents make the whole process smoother. Assembling these upfront tends to shave real time off plan review, since San Jose's building division will flag missing survey data almost immediately.
Surveys and Site Plans
A current boundary survey, or at minimum a title company plat map cross-referenced with county assessor parcel data, forms the backbone of any setback analysis. Some older San Jose lots have irregular shapes or easements that affect where a rear-yard structure can legally sit, and these details rarely show up on a simple tape-measure walkthrough. A licensed surveyor stamp isn't always mandatory for a straightforward conversion, but it becomes valuable insurance against a plan check rejection.
Permit Portal Resources
San Jose's online permit portal lets homeowners pull parcel-specific zoning data, including overlay districts that might add restrictions beyond the base ADU ordinance. Cross-referencing that data against the Title 24 energy compliance requirements covered on the permits and Title 24 energy compliance service page tends to catch conflicts early, particularly around window placement near property lines, which affects both setback compliance and energy code glazing calculations.
Planning for the Long Haul
Setback compliance isn't just a box to check during permitting; it shapes what's possible down the road. A unit built right up against the four-foot minimum leaves little room for a future deck, walkway widening, or utility run without triggering a fresh variance request.
Detached Versus Attached Considerations
Detached garage conversions carry more setback flexibility in some ways, since the structure sits independently from the main house and can often claim the more generous rear-yard allowances. Attached conversions, by contrast, inherit the setback profile of the primary residence, which was likely built under an older, sometimes stricter code cycle. Long-term flexibility usually favors detached structures when lot size allows for it, though attached conversions tend to cost less overall, a tradeoff discussed at length in the cost breakdown for converting a garage into an ADU in San Jose.
Future Expansion and Resale Value
Appraisers and future buyers care about usable yard space almost as much as square footage. A garage ADU that eats up every inch of the rear-yard setback allowance can make a lot feel cramped, even if it's technically compliant. Leaving a modest buffer beyond the legal minimum, where lot size permits, tends to preserve resale flexibility and keeps room for a patio, storage shed, or future landscaping without a fight over remaining setback allowance.
Setback Nuances: Simple Conversions Versus Complex Builds
Not every garage ADU project faces the same level of setback scrutiny. The distance between a straightforward conversion and a ground-up detached build is significant, both in complexity and in how much setback flexibility applies.
Straightforward Garage-to-ADU Projects
Converting an attached garage into a home office, studio, or small living space usually involves the least setback friction, since the footprint doesn't change. These projects still need to satisfy other requirements, including the permit triggers described in whether a permit is needed to convert a garage into a home office in San Jose, but setback distance is rarely the bottleneck. Most delays in this category trace back to electrical or plumbing rough-in scope rather than property line math.
Advanced Detached Garage and Multi-Unit Scenarios
Detached garage conversions that also add square footage, or projects pursuing both an ADU and a JADU on the same lot, face a denser layer of rules. Setback calculations start interacting with lot coverage caps, fire separation distance between structures, and sometimes utility easements that weren't a factor for the original garage. These scenarios benefit from an early pre-application meeting with the city, since the setback math often needs to be resolved before floor plans can be finalized. A few bullet points worth flagging for anyone tackling this tier:
- Confirm whether the lot has any recorded easements running along the property line where the new structure is planned.
- Check fire separation distance between the main house and a detached ADU, which is a separate requirement from the setback-to-property-line distance.
- Verify height limits near the setback line, since San Jose sometimes graduates allowable height based on proximity to the boundary.
Balancing all of these variables is exactly the kind of work that benefits from a site visit rather than a desk review, since aerial parcel data doesn't always capture grade changes, existing fences, or utility pedestals that affect where a structure can realistically sit.
Frequently Asked Questions
Do San Jose ADU setback requirements apply to converted garages the same way as new construction?
No. Existing garage footprints generally keep their original setback, even if it's less than the current four-foot minimum, as long as no new square footage is added.
What is the minimum setback for a new detached ADU in San Jose?
Four feet from side and rear property lines is the standard minimum under California ADU law, which San Jose's municipal code follows.
Can a homeowner request a smaller setback through a variance?
Variances are possible but not guaranteed, and they add time to the permitting timeline. Most projects avoid them by working within existing nonconforming footprints instead.
Does converting a garage into a JADU change the setback rules?
Not directly, since setback rules are tied to the structure's footprint rather than its unit classification. Square footage caps, covered separately, tend to matter more for JADUs.
How is setback distance actually measured?
From the property line to the nearest exterior wall face of the structure, not from a fence, hedge, or other landscaping feature.
Do second-story additions above a garage face different setback rules?
Sometimes. Height-graduated setbacks can apply, meaning taller portions of a structure may need to sit further from the property line than a single-story footprint.
Is a survey required before starting a garage ADU project?
Not always mandatory, but strongly recommended, since fence lines rarely match recorded property boundaries exactly.
Do detached and attached garage conversions face different setback treatment?
Yes, in practice. Detached structures often have more flexibility with rear-yard allowances, while attached conversions inherit the setback profile of the main house.
Final Thoughts
Setback rules don't have to be the thing that derails a garage ADU project, especially once the existing footprint, lot survey, and property line distances are confirmed up front. Anyone weighing a conversion in San Jose should pull the parcel's zoning data and existing garage dimensions before finalizing a floor plan, since that single step prevents the most common redesign delays. Reaching out for a site visit is the fastest way to get a clear answer on what's actually buildable on a specific lot.
