A four-inch sewer lateral drops roughly a quarter inch per foot, and that single number determines whether a garage-to-ADU bathroom is a simple job or a five-figure headache. Sewer line tie-in garage ADU bathroom planning starts underground, long before anyone picks a tile or a vanity. Get the slope, the lateral location, and the connection point wrong, and the rest of the build stalls behind it. For San Jose Garage Conversions, this is where a project either moves fast or grinds to a halt waiting on inspection corrections.
Most South Bay garages sit close enough to the main house lateral that a direct gravity tie-in is possible. Others don't have that luxury, and the fix involves an ejector pump, a longer trench, or a rerouted cleanout. Homeowners planning a full garage-to-ADU conversion need to treat the sewer question as step one, not an afterthought squeezed in after framing.
Contents
- Why the Sewer Tie-In Decides the Whole Bathroom Layout
- Planning the Connection for the Long Haul
- Keeping the New Line Trouble-Free After Install
- Gravity Feed vs. Pumped Systems: Choosing the Right Approach
- Knowing When a Tie-In Makes Sense — and When It Doesn't
- Practical Moves That Save Time and Money
Why the Sewer Tie-In Decides the Whole Bathroom Layout
A garage ADU bathroom can't go just anywhere inside the slab. The toilet, in particular, needs a clear gravity path to the existing lateral or a pump chamber close by. Framers and tile setters work around plumbing, not the other way around. That's a hard rule on every job San Jose Garage Conversions has handled.
Gravity vs. Ejector Pump Systems
Gravity systems rely on slope alone. Pumped systems use a sealed basin and a grinder or effluent pump to push waste uphill to the lateral. Gravity is always the cheaper, lower-maintenance option when the elevation allows it. Pumps solve real problems, but they add a mechanical part that eventually needs replacing.
Locating the Existing Lateral

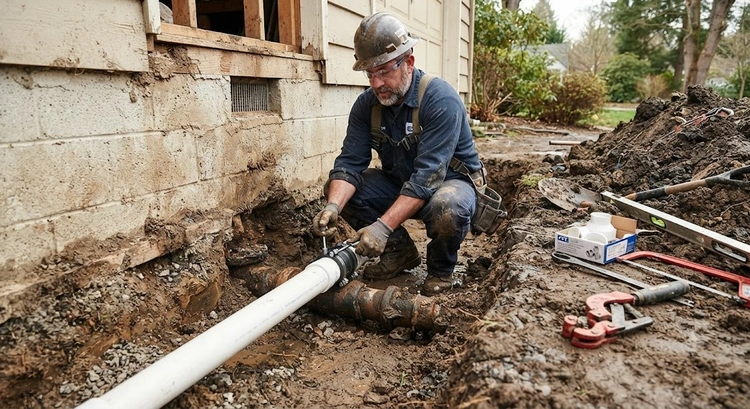

Before any trenching starts, a locator crew or camera scope should confirm exactly where the house lateral runs and how deep it sits. Old permit records help, but South Bay lots have surprises — relocated laterals, abandoned cleanouts, root-damaged sections nobody documented. Skipping this step is how projects hit a six-inch-deep pipe when they expected two feet of clearance.
Camera-scope the lateral before design finalizes the bathroom layout. A locator crew costs a few hundred dollars; redesigning a slab after the fact costs far more.
Planning the Connection for the Long Haul
A tie-in built for today's bathroom often needs to serve a kitchenette or laundry hookup added later. Sizing and access decisions made now save a second trench dig in a few years. This is where the garage ADU utility separation approach pays off — treating water, electrical, and sewer as independent systems that each get proper capacity from day one.
Pipe Sizing for Future Additions
A single-fixture bathroom can run on a 2-inch branch line, but tying into a 4-inch main lateral leaves room for a future kitchenette drain. Undersizing now means recutting concrete later. Most inspectors want to see the branch sized for the fixture count it actually serves, so oversizing the branch itself isn't the fix — oversizing the main connection point is.
Cleanout Placement and Access
Every new tie-in needs an accessible cleanout, full stop. Code requires one near the connection point and typically another where the branch line changes direction. Bury a cleanout under a future slab pour or landscaping bed, and the first clog becomes a full excavation. Mark the location clearly before any concrete goes down.
Keeping the New Line Trouble-Free After Install
New pipe doesn't mean maintenance-free pipe. Root pressure, grease buildup, and settling soil all affect a fresh tie-in the same way they affect a decades-old one — just on a longer timeline. Owners who ignore this end up back in a trench within ten years.
Preventing Root Intrusion and Buildup
PVC joints are far more root-resistant than old clay pipe, but joints and cleanout seals are still vulnerable. Keep new landscaping — especially trees — at least eight feet from the lateral run. Root intrusion is the single most common cause of tie-in failure in South Bay soil, according to most local plumbers' service records.
Signs the Tie-In Needs Attention
Gurgling drains, slow flush, or sewer odor near the cleanout are early warnings. None of these are cosmetic issues. A quick camera inspection catches a partial blockage before it becomes a backup into the new bathroom.
| Factor | Gravity Tie-In | Ejector Pump Tie-In |
|---|---|---|
| Upfront cost | Lower | Higher (basin, pump, alarm) |
| Maintenance | Minimal | Pump service every few years |
| Power dependency | None | Requires backup power plan |
| Best fit | Slab above lateral invert | Slab below lateral invert |
| Failure mode | Slow drain, clog | Total backup if pump fails |
Gravity Feed vs. Pumped Systems: Choosing the Right Approach
The elevation of the garage slab relative to the street-side lateral invert settles this argument, not personal preference. A quick site survey with a laser level answers the question in under an hour.
When Gravity Works
If the bathroom floor sits above the lateral's invert elevation with enough fall to spare, gravity wins every time. It's simpler, cheaper, and has nothing mechanical to fail. Most attached-garage conversions in the South Bay qualify, since the garage slab usually sits close to the house's existing plumbing stack.
When a Pump Becomes Necessary
Detached garages set below street grade, or bathrooms placed far from the main stack, often can't achieve enough slope. That's when an ejector pump basin becomes the only realistic option. It's not a downgrade — it's the correct engineering call for that specific lot.
Knowing When a Tie-In Makes Sense — and When It Doesn't
Not every garage bathroom should connect to the existing lateral. Sometimes a separate connection to the street main makes more sense, particularly for detached units with their own utility metering plans discussed in utility separation planning.
Good Candidates for a Direct Tie-In
Attached garages, short runs to the existing stack, and adequate elevation all point toward a straightforward tie-in. These jobs typically finish plumbing rough-in in a day or two.
Red Flags That Call for a Different Plan
An undersized or deteriorated existing lateral, a run longer than 50 feet, or a slab poured below the invert elevation are all signals to reconsider. Forcing a tie-in against these conditions invites chronic backups. In those cases, a fresh lateral to the city main, sized correctly from the start, is the better long-term investment.
If the existing lateral is original clay pipe from before 1970, camera-scope its full length before counting on it for a new tie-in. Deterioration hides well until it doesn't.
Practical Moves That Save Time and Money
A handful of small decisions early on prevent most of the costly surprises that derail garage bathroom plumbing.
Quick Wins Before Permits Are Pulled
- Camera-scope the existing lateral before finalizing bathroom placement
- Confirm slope with a laser level, not a guess
- Design the cleanout location before the slab layout is set
Each of these takes a day or less and heads off change orders after work is underway. Plumbers who skip them almost always pay for it in field revisions.
Common Mistakes to Avoid
The most frequent error is locking in a bathroom layout before confirming the lateral's depth and slope. A close second is undersizing the connection point to save a few feet of trench. Per the sanitary sewer standards most jurisdictions follow, minimum slope and pipe diameter requirements exist precisely to prevent these shortcuts from becoming failures.
Frequently Asked Questions
Can every garage bathroom tie into the existing house sewer line?
Not always. It depends on elevation, distance, and the condition of the existing lateral. A gravity tie-in works when the slab sits above the lateral invert with enough slope; otherwise a pump system is needed.
How deep does a sewer lateral typically run in South Bay homes?
Depth varies by lot and age of construction, often between 18 inches and several feet. A camera scope and locator confirm the exact depth before any trenching begins.
Does adding a garage ADU bathroom require a new cleanout?
Yes, in nearly every case. Code requires an accessible cleanout near the new connection point, and often another where the branch line changes direction.
What's the difference between a gravity tie-in and an ejector pump system?
Gravity relies on slope alone to move waste to the lateral. An ejector pump uses a sealed basin and pump to push waste uphill when slope isn't available.
How often does an ejector pump need service?
Most pumps need inspection every couple of years and replacement within ten to fifteen years, depending on usage and water quality.
Can tree roots damage a brand-new sewer tie-in?
Yes. Even PVC joints and cleanout seals are vulnerable to root pressure if landscaping is planted too close to the line.
Is a permit required for a sewer line tie-in on a garage ADU bathroom?
Yes. Plumbing permits are required for any new sewer connection, and inspectors will check slope, pipe sizing, and cleanout placement before approval.
What happens if the existing lateral is too small for the new bathroom load?
An undersized or deteriorated lateral usually needs replacement rather than a simple tie-in, especially if it's original clay pipe from before 1970.
Final Thoughts
Getting the sewer line tie-in garage ADU bathroom plan right before the slab pours saves months of delay and thousands in rework. Schedule a camera scope of the existing lateral and a rough elevation survey before locking in a bathroom layout — those two steps answer nearly every question in this article.
