Do You Need a Backwater Valve for a Garage Conversion Bathroom?

Short answer: yes, in most cases. A backwater valve garage conversion project in San Jose almost always needs one whenever the new bathroom sits below the elevation of the street's main sewer line. Without it, a surcharge in the city main can push sewage backward into the new fixtures instead of out to the street. Our team treats this the same way we treat the sewer line tie-in itself — a non-negotiable part of any garage-to-ADU or garage-to-JADU bathroom, not an optional add-on.

Garages sit at grade, often lower than the finished floor of the main house. That single fact drives most of the plumbing decisions our crews make on a garage conversion bathroom. Slab elevation, trap primer placement, and backflow protection all trace back to how close the new fixtures sit to the sewer main's flow line.

This piece walks through why the valve matters, when code actually requires it, what it costs to skip corners, and how our team plans for the long haul once the bathroom is finished and the inspector has signed off.

Why Backwater Valves Exist in the First Place

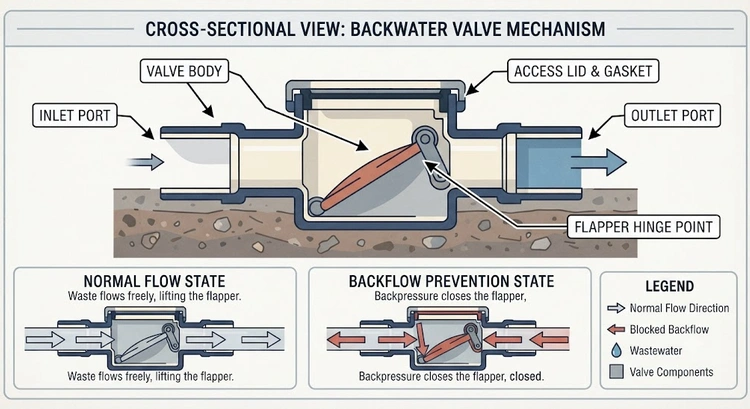

Sewer mains are gravity systems. Waste flows downhill toward the treatment plant, and every lateral connection assumes that direction never reverses. Heavy rain, tree roots, or an undersized municipal line can all cause a temporary surcharge. When that happens, the path of least resistance is often the lowest fixture connected to the system, and in a garage conversion, that lowest fixture is frequently the new bathroom.

Gravity Flow and Elevation Basics

Our team checks the flow line of the public sewer against the finished floor elevation of every garage bathroom before we design the drain layout. If the new toilet or shower flange sits below that flow line, backflow risk is real, not theoretical. This single measurement decides whether a backwater valve garage conversion install is required or simply recommended.

What Actually Triggers the Code Requirement

California Plumbing Code language ties the requirement to fixtures below the rim elevation of the nearest upstream manhole. Local San Jose inspectors apply this consistently on garage conversions because garage slabs rarely sit higher than the original house. Anyone weighing a sewer line tie-in for a garage ADU bathroom should expect this question during plan check.

Pro tip: our crews pull the as-built sewer elevation from the city before framing starts, not after the slab is poured.

Cases We've Seen in South Bay Garage Conversions

Field experience across dozens of South Bay projects has taught our team a few patterns worth sharing. Most surprises trace back to lot grading or an original sewer lateral installed decades before ADU rules existed.

Below-Grade Bathroom Fixtures

A recent Willow Glen garage-to-ADU had a slab nearly eight inches below the house's finished floor. The new bathroom's shower and toilet both sat under the street main's flow line. A backwater valve was mandatory, and the inspector flagged the omission on the first plan check submittal.

Older Homes With Aging Laterals

Homes built before the 1970s often have clay laterals with root intrusion history. Even when elevation alone wouldn't trigger the requirement, our team recommends the valve anyway on these lots. It's cheap insurance against a lateral that already backs up during heavy rain seasons, something documented well in general backflow prevention literature.

Backwater Valve vs. Other Backflow Protection

Backwater valves aren't the only tool for managing below-grade drainage, though they're the most common for a single garage bathroom. Sump-and-ejector systems and standpipe arrangements solve a related but different problem.

Side-by-Side Comparison

Which Option Fits a Garage Bathroom

For most garage conversion bathrooms, a properly rated backwater valve is the right call. Ejector pumps get reserved for basements or fixtures set well below any reasonable gravity connection, which is rare in a South Bay garage. Full context on how these systems tie into the broader house connection lives in our piece on garage ADU utility separation.

Weighing the Upside Against the Extra Cost

Every added fixture in a plumbing plan brings tradeoffs. A backwater valve is no exception, even though the upside is substantial.

What the Valve Buys

Flood protection is the headline benefit, but there's a secondary one: insurance carriers increasingly ask about backflow protection on ADU policies. Homeowners with a documented valve often see fewer questions during claims related to sewer backup.

Where the Tradeoffs Show Up

The valve itself adds modest cost, but the access panel it requires can eat into usable garage floor space. Our design team plans around this early, usually tucking the panel into a closet or utility nook rather than the middle of a hallway.

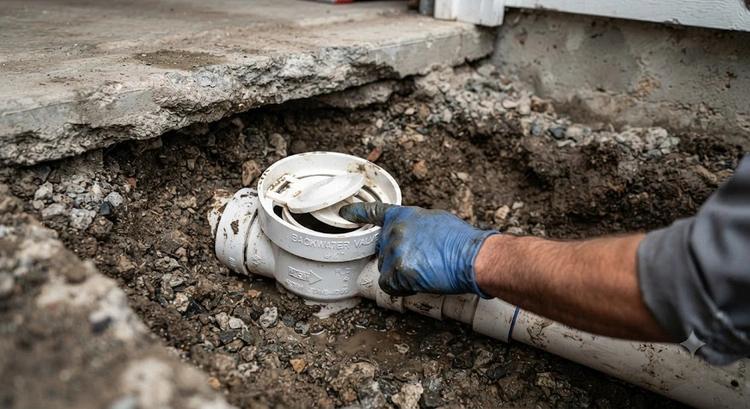

Getting the Installation Right the First Time

Installation quality matters as much as the decision to include one. A poorly placed valve creates headaches long after the drywall goes up.

Access Panel Placement

Code requires accessible service access, full stop. Our crews never bury a valve under finished flooring or behind a built-in cabinet. Coordinating this placement is part of the broader electrical, plumbing, and HVAC rough-in scope on every garage conversion job.

Inspection Timing

Inspectors want to see the valve before the trench gets backfilled. Scheduling this correctly avoids a costly re-dig, and our project leads always build a buffer day into the rough-in schedule for this exact inspection.

Warning: skipping the pre-backfill inspection is one of the fastest ways to trigger a stop-work order on a garage conversion.

Where Garage Conversions Go Wrong

A handful of recurring errors show up across the projects our team has corrected for other contractors. Most come down to rushing the plumbing rough-in.

Burying the Valve With No Access

Concrete gets poured, and the valve access panel gets forgotten. Fixing this after the fact means saw-cutting the slab, which is expensive and avoidable with better upfront coordination.

Protecting the Wrong Fixtures

Some installers place the valve only on the bathroom branch line instead of the full building lateral. That leaves other low fixtures exposed. A licensed plumber should map every fixture below the sewer's flow line, not just the newest ones.

• Confirm elevation data before slab pour, not after
• Locate the access panel somewhere genuinely reachable
• Test the flap mechanism during final walkthrough

Planning for Maintenance Down the Road

A backwater valve isn't a install-and-forget device. Sediment and debris can keep the flap from seating fully, which quietly defeats its purpose.

A Simple Maintenance Rhythm

Our team recommends a yearly check, ideally before the rainy season starts. Opening the access panel and clearing debris takes a licensed plumber less than thirty minutes in most cases.

Resale and Disclosure Considerations

Homeowners planning to sell benefit from documenting the valve's installation date and permit record. Buyers researching a garage ADU purchase often ask directly, and having a clean paper trail speeds up escrow. This pairs well with keeping other permit documents organized, something we cover in our guide on how long a garage conversion permit takes in San Jose.

Bottom line: a well-documented, well-maintained backwater valve protects both the investment and the resale story.

Frequently Asked Questions

The cheapest insurance in a garage conversion bathroom sits underground, and it only works if it gets installed before the concrete does.
