Ceiling Height Rules at a Glance: ADU, JADU, and Standard Rooms
You'll find plenty of variation in how garages were originally framed, which is exactly why this deserves its own section before you draw up plans. The California Department of Housing and Community Development treats an ADU as subject to the same building code as any other dwelling unit, and ceiling height is no exception to that rule.

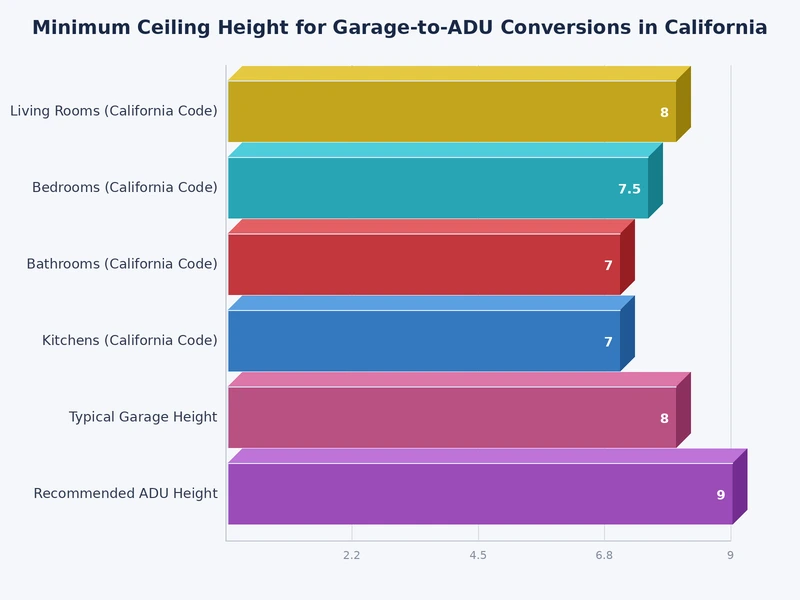

Comparing Minimum Clearances by Room Type
Not every square foot of your future ADU needs to hit the same number, and knowing where the flex exists can save you from an unnecessary roof-raise. Habitable rooms — bedrooms, living areas, kitchens — need a full 7 feet of clearance across the required floor area. Hallways carry the same 7-foot rule with zero exceptions for beams or ductwork passing overhead. Bathrooms and laundry rooms get a break: 6 feet 8 inches is acceptable, but only directly over the fixture itself, not across the whole room. Structural beams, girders, and mechanical ductwork can dip as low as 6 feet 4 inches, provided they're spaced 4 feet or more on center. Sloped or attic-style ceilings need 7 feet over at least half the required floor area, with no point dropping below 5 feet.
| Room or Area Type | Minimum Clearance | Where the Exception Applies |
|---|---|---|
| Habitable rooms (bedroom, living space, kitchen) | 7'0" | Across the full required floor area |
| Hallways | 7'0" | No exceptions for beams or ducts |
| Bathrooms and laundry rooms | 6'8" | Measured directly over the fixture only |
| Beams, girders, ductwork | 6'4" | Spaced 4 feet or more on center |
| Sloped or attic-style ceilings | 7'0" over 50% of area | No point below 5'0" |
Why the Numbers Differ Between Agencies
Local building departments across Santa Clara County apply the same statewide code, but plan checkers interpret existing non-conforming structures differently when you're altering rather than building new. A garage with an already-shallow slab or low collar ties sometimes qualifies for narrower relief under alteration provisions, though you shouldn't count on that without a formal review. Always confirm your specific jurisdiction's read before you finalize a budget or a framing plan.
Never rely on a neighbor's or a friend's approved plan set as proof your garage qualifies — clearance is measured structure by structure, and no two garages frame out identically.
When Your Garage Meets Garage ADU Ceiling Height Requirements — and When It Doesn't
Measuring Your Existing Clearance the Right Way
Start at the lowest point in the garage, not the highest. Homeowners routinely measure at the ridge and assume they're fine, then discover during framing that a sagging collar tie or a dropped duct chase kills six inches right where a bedroom needs to go. Measure from finished floor to the lowest structural or mechanical obstruction across the entire footprint you intend to make habitable, and do it at multiple points, not just the center.
Red Flags That Signal a Roof-Raise Is Coming
Older tract-built garages, shallow-pitch roofs, and structures with add-on storage lofts are the usual suspects. If your existing slab sits below grade — common in homes with a step-down garage — you're already fighting a deficit before framing even starts. A qualified contractor can tell within one site visit whether you're looking at a straightforward finish-out or a structural roof modification.
What It Costs to Fix a Ceiling Height Shortfall
Lowering the Floor vs Raising the Roof
When your garage falls short, you generally have two paths: excavate and lower the slab, or lift the roof structure. Slab lowering keeps the roofline untouched but adds drainage, waterproofing, and foundation underpinning costs that stack up fast. Raising the roof preserves your existing floor but touches your roofline, siding, and often triggers a full re-roof — plus a harder conversation with your city about height limits and neighbor sightlines. Neither option is cheap, and the right call depends on your lot, your budget, and how much of the garage actually falls short.
Hidden Costs That Blow Past the Estimate
Structural engineering, temporary shoring, permit resubmittals, and matching exterior materials on a raised roofline routinely add thousands beyond the framing labor itself. Homeowners comparing a garage conversion against the true cost to turn a detached garage into a guest house often underestimate this category specifically because it's invisible until demolition starts.
Get a structural engineer to sign off on your roof-raise scope before you get a contractor bid — an unverified assumption here can blow a budget by tens of thousands.
Tools and Methods Contractors Use to Verify Ceiling Clearance
Laser Levels and Story Poles on Day One

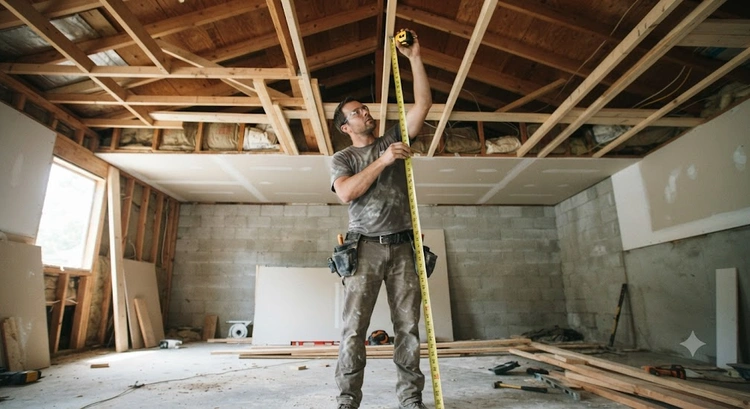

Before a single wall gets framed, a competent crew shoots the garage with a rotary laser level to map every high and low point across the slab and the underside of the roof structure. Story poles marked at 7 feet, 6'8", and 6'4" get set at multiple points so everyone on site — you included — can see clearance problems instead of just hearing about them on paper.
Working Around Trusses, Ductwork, and Insulation
Existing roof trusses often dictate what's possible without a full reframe, so contractors verify truss depth and bearing points early. Insulation thickness matters here too, since a well-insulated ceiling assembly eats into clearance you might be counting on. This is one more reason garage conversions demand tighter coordination between structural, insulation, and mechanical trades than most homeowners expect going in.
Simple Height Fixes vs Advanced Roof Modifications
Standard Conversions With Adequate Clearance
If your garage already clears 7 feet at the plate and your roof framing has reasonable slope, you're in the easiest category of conversion. Standard insulation, drywall, and finish work proceed without touching the structural envelope, which keeps both your timeline and your budget in far better shape.
Advanced Projects Requiring Structural Roof Work
Garages that fall short need engineered solutions — raised heel trusses, a full roof reframe, or in some cases a complete tear-off and rebuild of the roof structure at a taller plate height. These projects require a licensed structural engineer, additional plan check cycles, and a contractor with real experience sequencing roof work around an occupied property. Don't let an inexperienced crew talk you into shortcuts here; this is exactly where garage ADU ceiling height requirements get treated as optional, and it's exactly where inspectors will fail you.
Keeping Your Finished Space Serviceable Without Losing Headroom
Coordinating Trades Around Limited Clearance
Once you've hit code minimums, protect that clearance through every remaining trade. HVAC runs, plumbing vents, and electrical chases all compete for the same limited vertical space above a finished ceiling, and a careless subcontractor can eat your margin in a single afternoon. Coordinate trade sequencing early so nobody has to reroute a duct through your only available clearance after drywall is already up.
Protecting Clearance After Drywall Goes Up
This matters even more if you're also managing soundproofing for a garage in-law suite, since acoustic assemblies add their own thickness to the ceiling stack. Once finishes are installed, reopening a ceiling to fix a clearance mistake is disruptive and expensive, so verification belongs before drywall, not after.
Every layer you add above finished floor — insulation, ductwork, drywall, acoustic underlayment — subtracts from your legal clearance. Track the stack-up on paper before anyone starts building.
Planning Your Conversion Timeline Around Height Requirements
Sequencing Height Fixes Before Everything Else
Ceiling height isn't something you patch at the end. It has to be resolved before permits get drawn, because it drives your structural scope, your engineering costs, and often your timeline for approval. Homeowners who lock in floor plans before confirming clearance end up re-permitting, which costs more than getting it right the first time. Coordinating your framing scope with permits and Title 24 energy compliance up front keeps your plan check moving instead of bouncing back for corrections.
Building for What Comes Next
If there's any chance you'll add a second story or convert an additional structure down the road, factor that into your roof and foundation decisions now. A garage conversion planned with future flexibility in mind — rather than the bare minimum to pass inspection today — tends to hold its value and avoid costly rework later.
Frequently Asked Questions
What is the minimum ceiling height for a garage ADU in California?
The California Residential Code sets a 7-foot minimum ceiling height for habitable rooms, and that baseline governs garage ADU ceiling height requirements in nearly every South Bay jurisdiction, with only narrow exceptions for beams, ductwork, bathrooms, and sloped ceilings.
Can I convert a garage with 6-foot-6-inch ceilings?
Not as habitable space without modification. You'll need to either lower the slab, raise the roof structure, or work with your building department on an alteration-specific interpretation, since 6'6" falls short of the 7-foot standard almost everywhere it applies.
Do bathrooms have different ceiling height rules than bedrooms?
Yes. Bathrooms and laundry rooms only need 6 feet 8 inches directly over the fixture, while bedrooms, living areas, and hallways need the full 7 feet across the required floor area.
How much does it cost to raise a garage roof for ADU conversion?
Costs vary widely based on roof complexity, engineering scope, and whether re-roofing and exterior matching are required, but expect a roof-raise to add substantially more than a straightforward finish-out conversion with adequate existing clearance.
Will insulation and ductwork reduce my usable ceiling height?
Yes, and homeowners frequently forget to account for it. Insulation thickness, duct chases, and acoustic layers all subtract from your framed clearance, so plan your finish stack-up before assuming you've cleared code.
Do JADU conversions have different height rules than full ADUs?
No, JADUs follow the same California Residential Code ceiling height standards as any other habitable space, though your local building department may interpret alteration provisions for existing structures differently case by case.
How do I know if my garage needs a roof-raise before I start?
A contractor or structural engineer can determine this on a single site visit using a laser level and story poles set at code-minimum heights, which is far cheaper than discovering the shortfall mid-framing.
Key Takeaways
- California's 7-foot ceiling height baseline applies to garage ADU conversions, with narrower allowances only for beams, bathrooms, and sloped ceilings.
- Always measure clearance at the lowest point across the full footprint before finalizing floor plans, not just at the ridge.
- Fixing a shortfall means choosing between lowering the slab or raising the roof, and both paths carry hidden costs beyond framing labor.
- Resolve ceiling height and permit scope before drywall goes up — reopening a finished ceiling to fix a clearance mistake costs far more than verifying it upfront.
