San Jose Setback Rules for Garage Conversions Explained

San Jose's Planning Division rejects roughly one in four garage conversion applications on the first submission, and setback miscalculation ranks among the top three causes. Understanding garage conversion setback requirements San Jose homeowners must satisfy before you draft a single floor plan protects your timeline and your budget. Whether you are pursuing a garage-to-JADU, a full ADU, or a home office buildout, the distance between your structure and the property line dictates what you can legally build. This guide walks through the specific numbers, the exceptions that apply to existing garages, and the documentation you need before you request a Title 24 compliance review.

You will encounter three separate layers of regulation when you evaluate your lot: state ADU law, San Jose's municipal code, and your lot's underlying zoning district. Each layer interacts with the others, and the most restrictive standard typically governs your final design. Homeowners who convert an existing garage footprint receive far more flexibility than those constructing a new structure, since state law generally exempts conversions from side and rear setback increases when no expansion occurs.

How to Confirm Your Setback Requirements Before You Design

You must establish your lot's exact boundaries and your garage's precise position relative to those boundaries before an architect drafts anything. Skipping this step forces costly revisions once the city's plan checker returns your application with corrections.

Pull Your Survey and Zoning Records

Request your property's recorded survey and zoning designation from the Santa Clara County Assessor's Office and San Jose's zoning viewer. Confirm these details before you proceed:

• Your parcel's zoning district (R-1, R-2, or a planned development overlay)
• The recorded lot dimensions and any irregular boundary angles
• Existing easements that may restrict buildable area beyond standard setbacks
• Prior permits on file that document your garage's original approved footprint

Measure Your Existing Footprint Accurately

Hire a licensed surveyor to verify your garage's distance from each property line rather than relying on assessor sketches, which frequently understate real-world discrepancies. A surveyor's stamped measurement carries weight with plan checkers that a homeowner's tape measure never will. Review our step-by-step permit process for detached garage conversions to see where this measurement fits into the broader submission sequence.

Order your survey before you commission architectural drawings. A discrepancy discovered mid-design forces a costly redraw.

Common Misconceptions About Garage Conversion Setbacks

Homeowners frequently repeat outdated or oversimplified assumptions about setback rules, and these assumptions lead directly to rejected applications.

The Myth of a Single Uniform Rule

No single number governs every San Jose garage conversion. Your required distance from the property line depends on whether your project is attached or detached, whether it existed before current ADU ordinances took effect, and whether you are expanding the original footprint. Treat every project as its own calculation rather than applying a number you heard from a neighbor.

The "Grandfathered Forever" Assumption

An existing garage built decades ago under looser standards does not automatically retain unlimited flexibility once you convert it into livable space. Converting the use of a structure can trigger current code compliance, particularly for life-safety systems, even when the footprint itself remains exempt from new setback enforcement. Consult our San Jose garage ADU setback requirements guide for the specific thresholds that apply to converted structures.

Setback Rules Across Different Conversion Types

The setback distance you must maintain shifts significantly depending on the conversion category you pursue, and comparing these categories side by side clarifies which path best suits your lot.

Attached Versus Detached Conversions

Attached garage conversions generally inherit the primary residence's front setback, since the structure shares a wall with your home. Detached conversions, by contrast, follow separate accessory-structure standards that permit much tighter side and rear clearances. Our comparison of detached garage ADUs versus attached garage ADUs expands on how this distinction affects your overall design strategy.

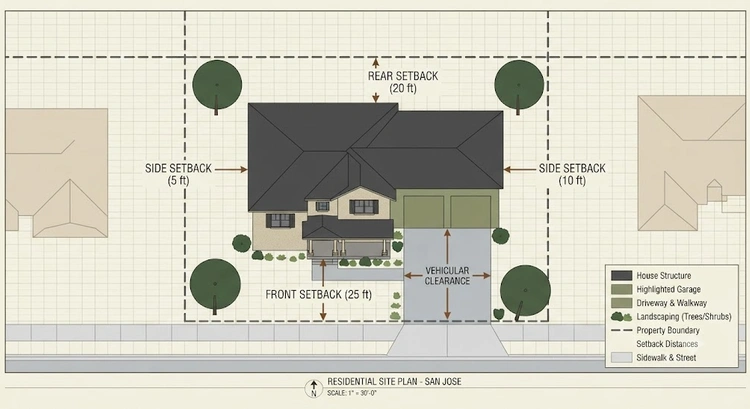

Setback Comparison by Project Type

The table below summarizes typical minimum clearances you should expect to encounter, though your final numbers depend on your specific zoning district and lot configuration.

Consult the California Department of Housing and Community Development's ADU guidance for the state-level framework that San Jose's municipal code builds upon.

Strategies to Maximize Usable Space Within Setback Limits

Fixed setback boundaries do not have to constrain your livable square footage as severely as they first appear. Thoughtful planning around these limits often recovers space you assumed was lost.

Interior Planning Around Fixed Boundaries

Use these techniques to preserve interior volume despite exterior constraints:

1. Push storage and mechanical closets toward the setback-restricted walls rather than living space
2. Specify slim-profile wall assemblies that meet Title 24 insulation values without excess thickness
3. Orient primary living areas toward the side of the lot with the most generous clearance
4. Use pocket doors and built-in furniture to compensate for reduced circulation width

Review our single-car versus two-car garage conversion layout ideas for floor plans specifically designed around narrow footprints.

Site Planning for Access and Egress

Your setback distance also governs where you can locate required emergency egress windows and pathways. Coordinate your window placement early so that egress compliance does not force a redesign after your structural drawings are finalized.

Do not finalize your egress window locations until your surveyor confirms your final setback dimensions on all four sides.

When Reduced Setbacks Apply and When They Do Not

State ADU law grants meaningful setback reductions for many garage conversions, but these reductions come with specific conditions that you must satisfy precisely.

Conditions That Qualify for Reduction

You generally qualify for reduced or eliminated setback requirements when your project meets these conditions:

• The conversion occurs entirely within the existing garage footprint
• No portion of the structure's exterior walls is relocated or expanded outward
• The original structure was legally permitted under a prior approval
• Roof height and overall bulk remain consistent with the existing structure

Conditions That Disqualify a Project

You should expect standard setback enforcement to apply, without reduction, whenever your project involves any of the following:

• New square footage added beyond the original garage walls
• Demolition and rebuild rather than true conversion of the existing shell
• A second story added above the original single-story footprint
• An undocumented or unpermitted original structure with no verifiable history

The distinction between JADU and full ADU paths often determines which of these conditions applies to your project; our JADU versus ADU permit path comparison breaks down the practical differences.

Setback Mistakes That Delay San Jose Permits

Certain errors appear repeatedly in rejected applications, and each one is entirely avoidable with proper preparation.

Eyeballing Distances Instead of Surveying

Homeowners who estimate their property line location based on fencing or landscaping frequently discover, only after submission, that the actual boundary sits several feet away from their assumption. This single error accounts for a disproportionate share of plan check corrections. A licensed survey eliminates this risk entirely and should be treated as a mandatory first expense rather than an optional one.

Ignoring Recorded Easements

Utility and drainage easements can restrict your buildable area independently of standard setback rules, and many homeowners overlook this layer entirely. Order a full title report alongside your survey so that recorded easements appear on your site plan before submission. Failing to disclose a known easement can result in a stop-work order well after construction has begun.

• Cross-reference your title report against your survey before finalizing your site plan
• Confirm utility company easements separately, since some are not recorded on title
• Ask your contractor to flag any encroachment risk before permit submission

Maintaining Compliance After Your Conversion Is Complete

Setback compliance does not end once your final inspection passes. You retain ongoing responsibility for keeping your property consistent with the approved plans on file.

Post-Permit Recordkeeping

Retain these documents indefinitely, since future renovations or property sales will require them:

• Your final approved site plan showing all measured setbacks
• Your surveyor's stamped report
• Your final inspection certificate and certificate of occupancy
• Any recorded easement documentation referenced during permitting

Planning for Future Additions

Any future structure you add to your property, including sheds, patio covers, or fencing near the converted garage, must respect the same setback lines established during your conversion. Consult your original site plan before beginning any new project so that you do not inadvertently encroach on a boundary your conversion previously respected. For subpanel or electrical capacity questions tied to future additions, see our subpanel upgrade cost guide for garage ADUs.

Frequently Asked Questions

Next Steps

1. Order a licensed survey of your property to confirm exact distances from all property lines.
2. Pull your parcel's zoning designation and title report to identify any recorded easements.
3. Compare your project against the qualifying conditions for reduced setbacks before finalizing your design.
4. Schedule a consultation to review your site plan against current San Jose ADU and JADU standards.
5. Retain all survey, permit, and inspection documents for future reference and resale disclosure.
